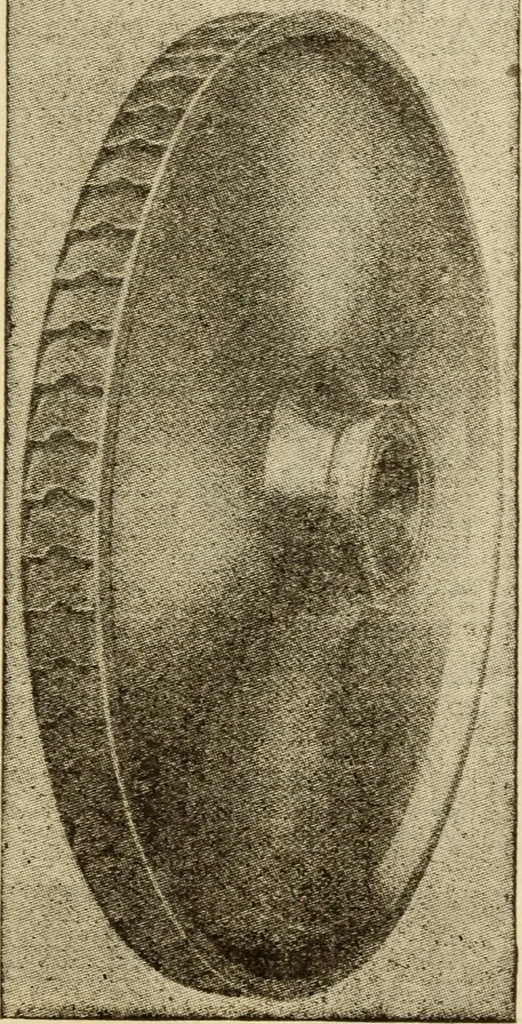

engine^ the dimensions of which have alreadybeen given^ was a reversing rolling mill engine. The stuff-ing box used in the Bateau turbine is clearly illustrated inPigs. 240 to 243. The Reidler-Stumpf Steam Turbine This turbine is manufactiired in Germany and its essen-tial characteristics are the… … Fig. 298 of one of the wheels, and Fig. 299 shows sections of abucket, and nozzle. The buckets are worked out of a solid forged wheel witha milling cutter, consequently they are very strong, anddurable. 693 694 Steam Engineering The steam jet enters the bucket C from the nozzle B^ andis deflected…
