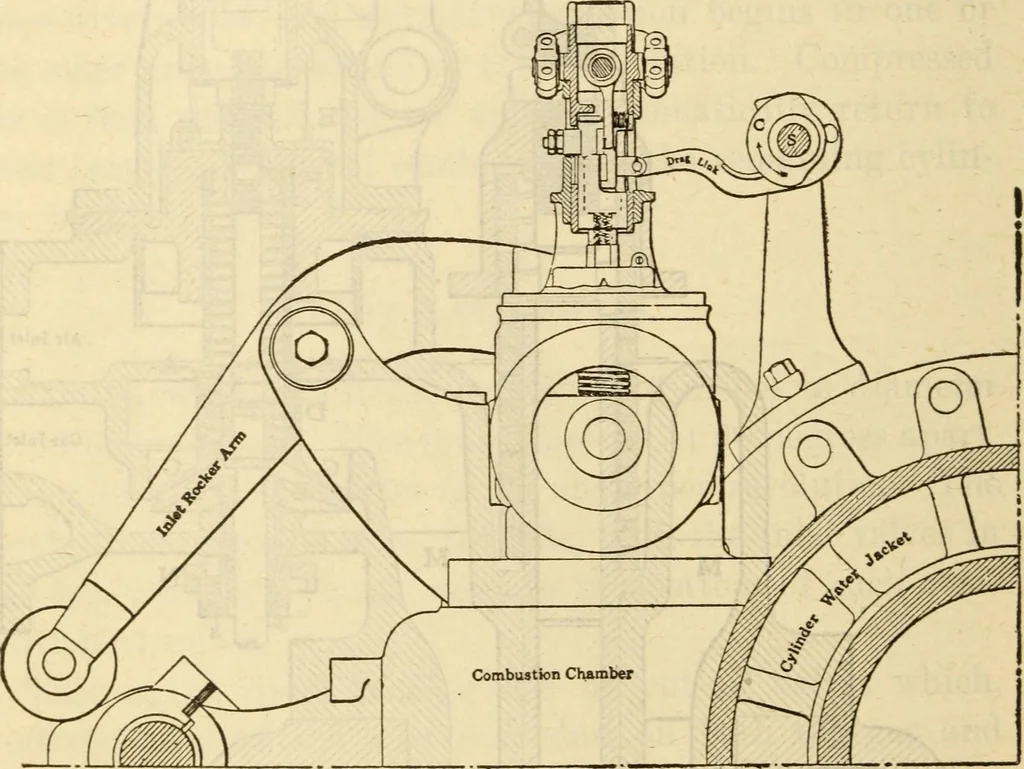

gas engine air, the adjustment being made by means of the knurledhead N, which is locked in the proper position by the set-screw s. The shank of the baffling disc serves also as a 778 Steam Engineering guide for the lower end of the stem of the cut-off valve.The valve discs A and G are connected by… … Fig. 332 END ELEVATION OF INLET AND CUT-OFF MECHANISM. ENGINE SNOW GAS The main inlet valve I is opened and closed always atthe beginning, and termination of the suction stroke, by theinlet rocker-arm (Fig. 332), and its stem is linked-to ashort rocker-arm E, Fig. 331, to the other end of which…
