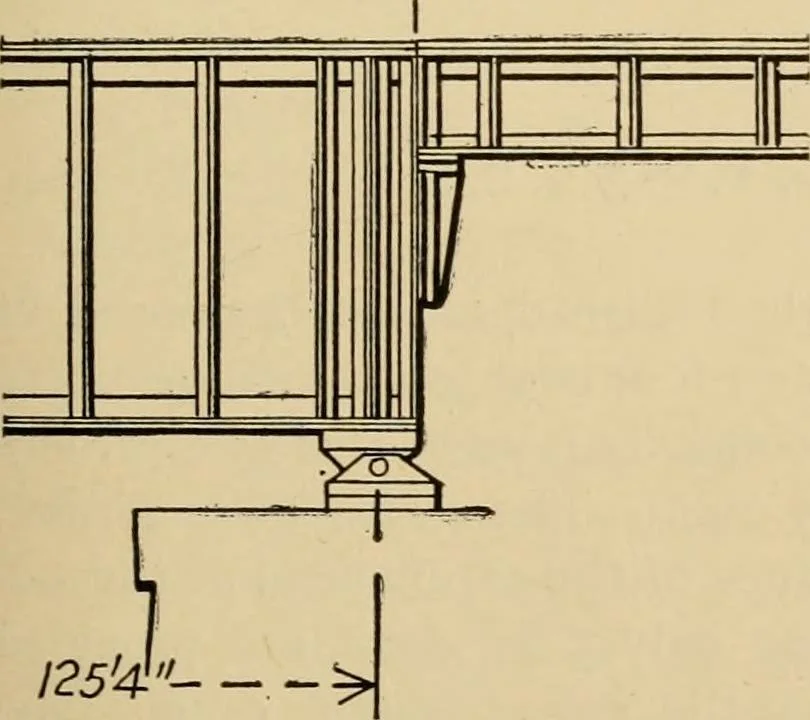

Horizontal Section X-X.Fixed oind Expansion End Bearings.Pennsylvania R. R. Viaduct inJersey City. \2l\0 -^ JJ8- — … /254_ _ Pine Creek Bridge of N.and H. R. R. R. Y. C. girder. has a shelf angle with its hori-zontal flange reinforced by apair of vertical angles back toback, with a filler plate betweenthem, and with both ends milledto bearing on the flange andshelf angles. The longitudinalgirder has slotted holes…
