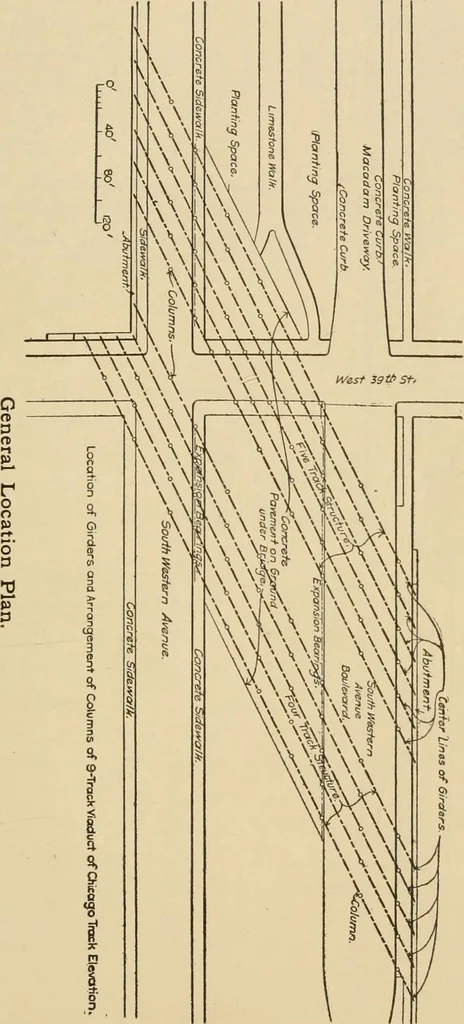

ers are shown by small circles, andthe center lines of the girders are broken with single dots. Onthe north side of the boulevard six lines of girders are arranged13 ft. apart on centers in one group, and on the south side anentirely separate group of five lines is arranged 13 ft. apart on TRACK… … other bearings for the girders being fixed both on the columnsand on the abutments. The girders are of simple, ordinary construction, with full-length plates and angles in the T-shaped flanges so that splices 294 BklDGE CONSTRUCTION
