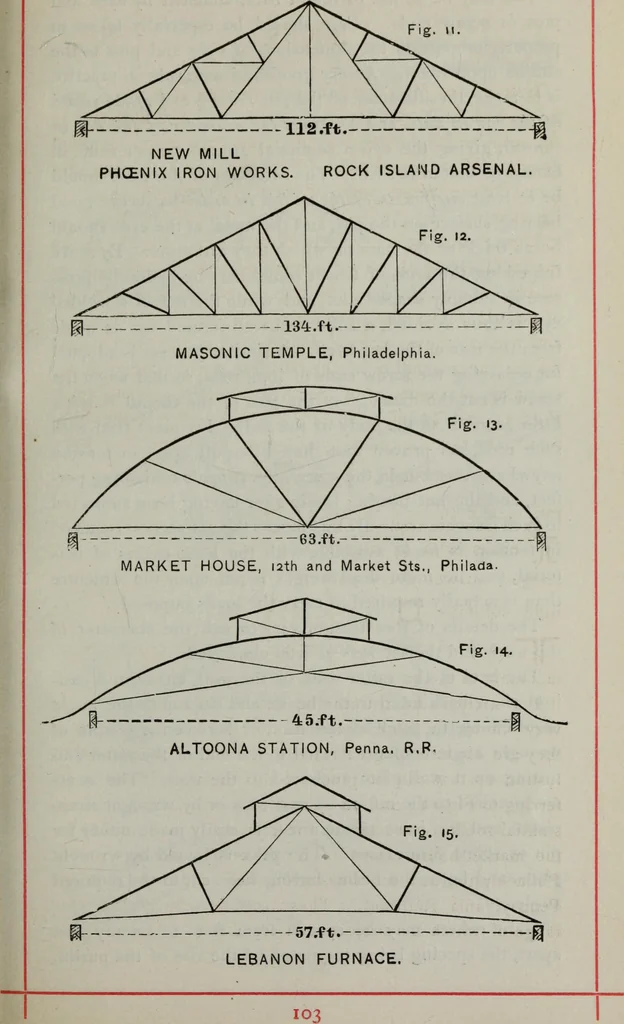

ed for peaked roofs; but asthey are capable of great variety of treatment, the best il-lustrations that can be given of their forms will be by re-ferring to Figs. 13 and 14—the highly ornamental and sub-stantial roofs constructed by the Phoenix Iron Company forthe market-house corner of Twelfth and… … THE PHOENIX IRON COMPANY, Ties may be of flat or round bars, attached by eyes andpins or screw ends. Care should be especially taken toproperly proportion the dimensions of eyes and pins to thestrains upon them. A very good and safe rule in practiceis to make the diameter of the pin from \ to i of…
