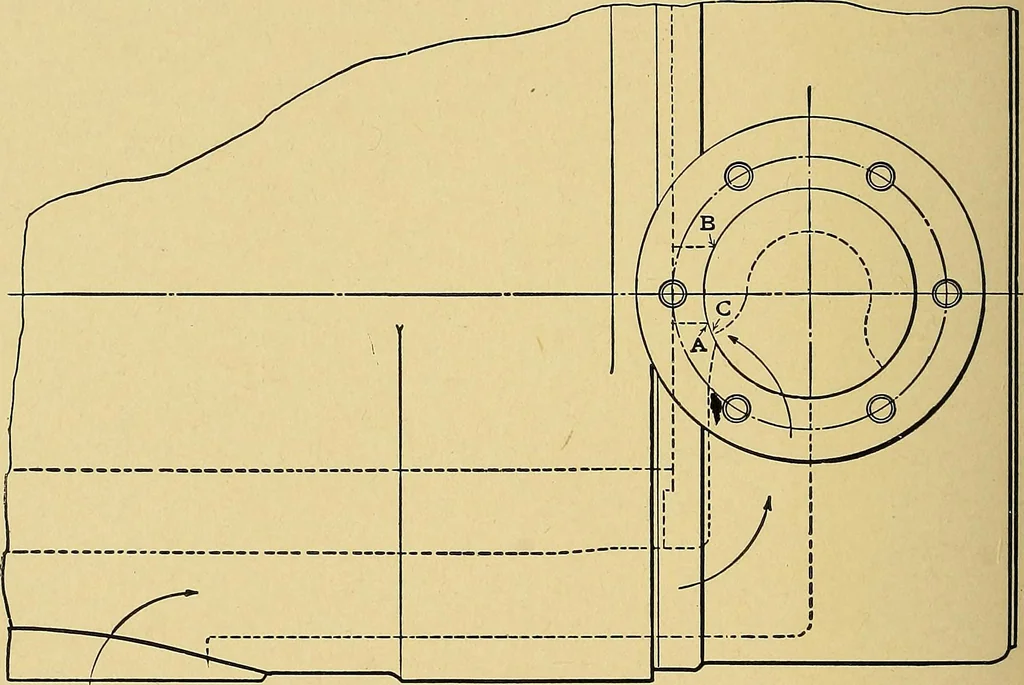

is to be adjusted so that the wrist plate will travel cor-rectly when in motion. The two outer marks indicate the extremes oftravel, and the central mark of the wrist plate, when in line with thesingle mark on the hub, shows that the wrist plate is central. To Set the Suction Valve To set the… … FIG. 194. on the drawing. The wrist plate should now be connected to the eccentricby the rods and, being in its central position, the rods must be adjustedso that the eccentric also is in its center of motion. The eccentric can nowbe secured to the crank shaft after the crank pin is moved…
