Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 55

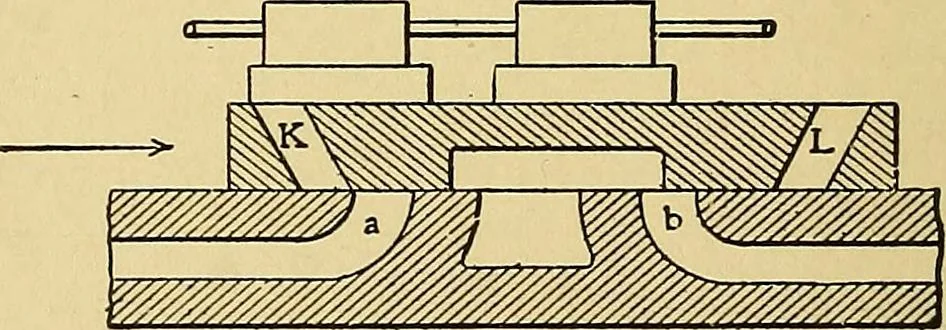

FIG. 48. cut-off eccentric were set at less than 90 degrees behind the crank, thecut-off valve would first effect the cut-off, then lag behind and reopenthe port K. In Fig. 49, for example, the cut-off eccentric has been ad-vanced to 86 degrees behind the crank, and the cut-off valve after having…
