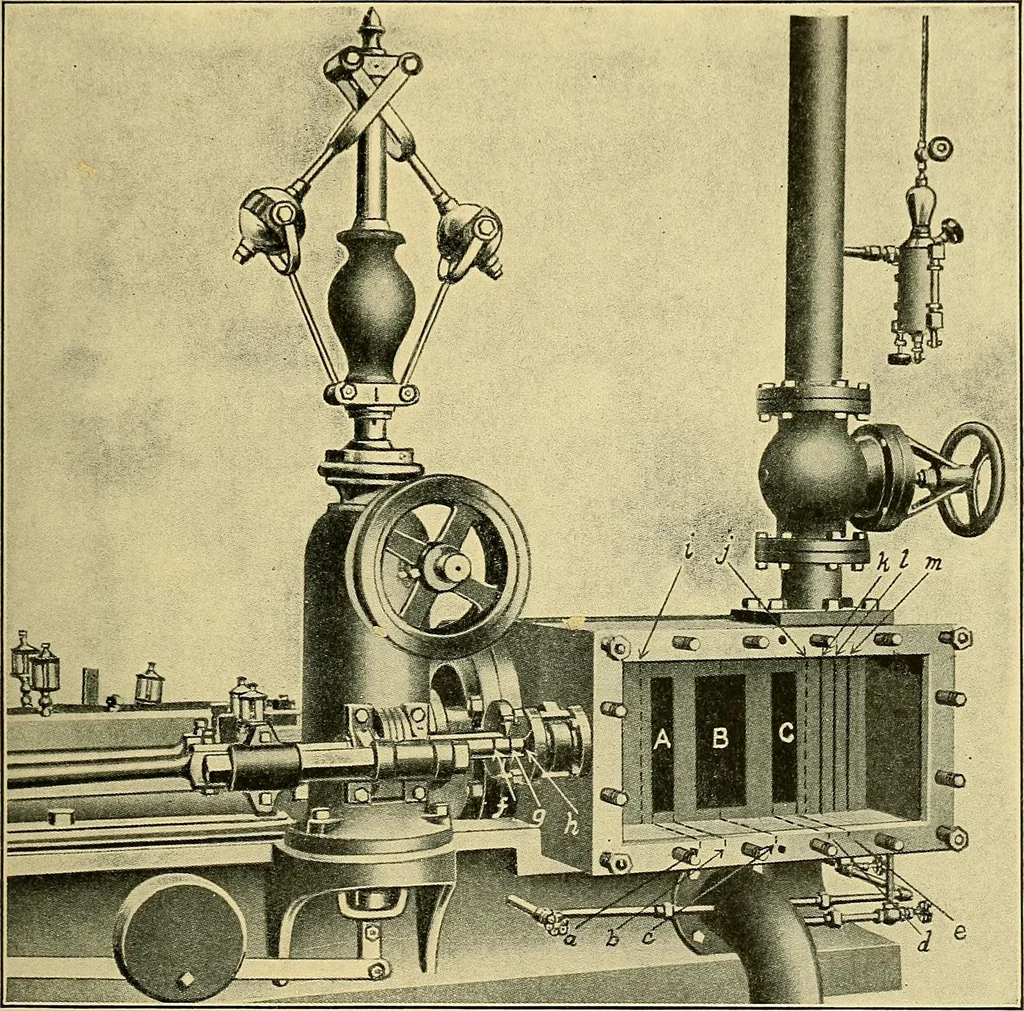

actically the same as any D slide valve. THE RIDING CUT-OFF VALVE 49 Fig. 53 shows a steam chest with the valves removed. Take a scaleand scriber and mark lines from the lower end of the ports A and C onthe valve seat down to the bottom of the valve chest, and with an adjust-able square resting on… … FIG. 53. through the middle of the exhaust port B and carry it out in the sameway to the point c on the steam-chest flange. In Fig. 54 is shown the main valve in position, with the center lineA corresponding with the center line c on the steam-chest flange. Thisshows the valve on the center of…
