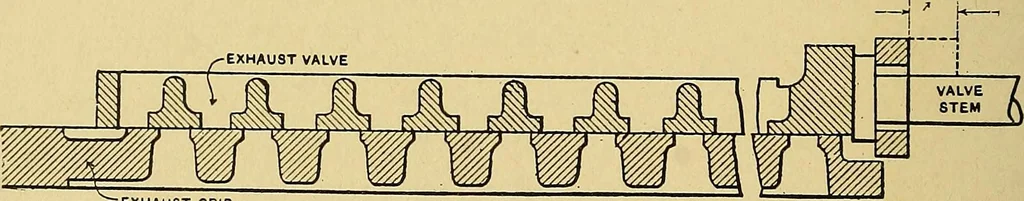

FIG. 89. —MAIN STEAM VALVE IN EXTREME INNER POSITION. AUXILIARY STEAMVALVE IN CENTRAL POSITION. advance; all driven by a positive valve gear which permits of high rotativespeeds and dispenses with dashpots and releasing gear. Figs. 89 and 90 are enlarged views of the valves and grids, and showthe… … -EXHAUST GRID FIG. 90.— EXHAUST VALVE IN EXTREME INNER POSITION. while Figs. 91, 92, and 93, in connection with Figs. 83, 83, 84, and 85,illustrate the instructions for setting the valves. Setting the Valves As a .preliminary to setting the valves it is necessary to know thestrokes, laps, and leads…
