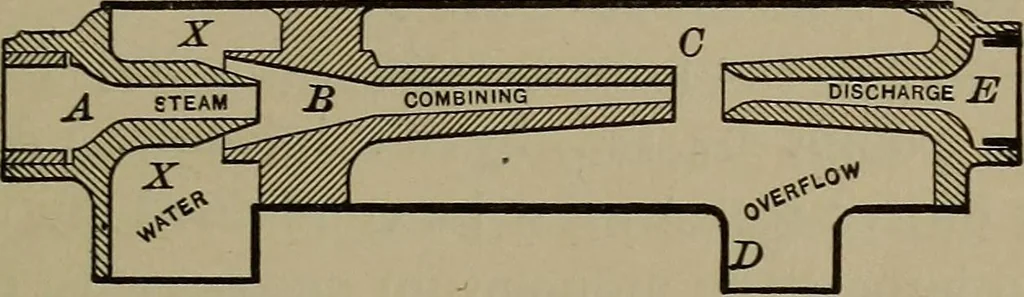

nge-ment of parts shown in the annexed illustration, Fig. I.Steam at a high velocity passes from the boiler intothe tube A, and striking the feed-water at B, is itselfcondensed, but imparts momentum to the water to SHORTNESS OF WATER. 103 send it rushing along into the delivery-pipe E… … Fig. i. overflow opening is provided in the injector, throughwhich the water can flow unchecked till the necessarymomentum is obtained, when the overflow-valve isclosed. In a lifting injector the parts are so designed that,in starting, a jet of steam passes through the combin-ing tube B at…
