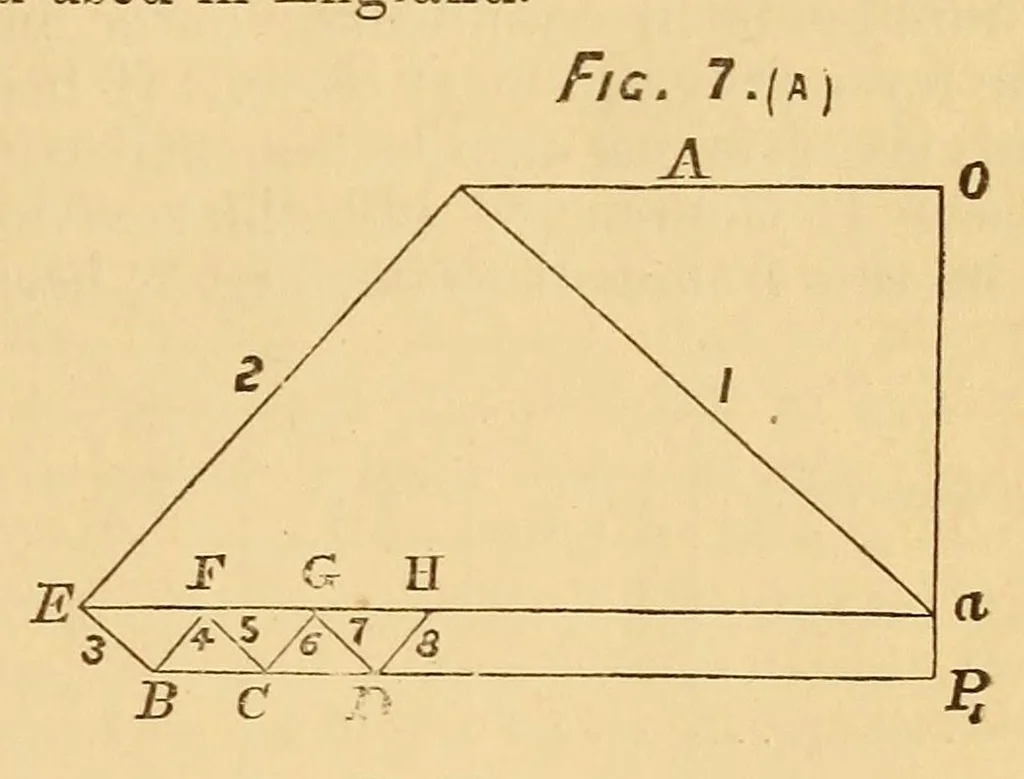

strain. the force polygon and bring us back For an excellent presentation of the above method, we refer the reader to to o. Iron Bridges and Roofs, by W. C. Un- Now starting at the left support, we have the vertical reaction a c , the hori- win. Pp. 128-140. The above method zontal force a b, and… … to carry out the construction for the rest Fic.7.[b) of the frame, the upper flanges after D would radiate from o. D C B A A comparison of Fig. 6 (a) and (b) shows that whereas under uniform load the strain in 1 is tension, for wind force the same brace is in compression. In fact in the first case…
