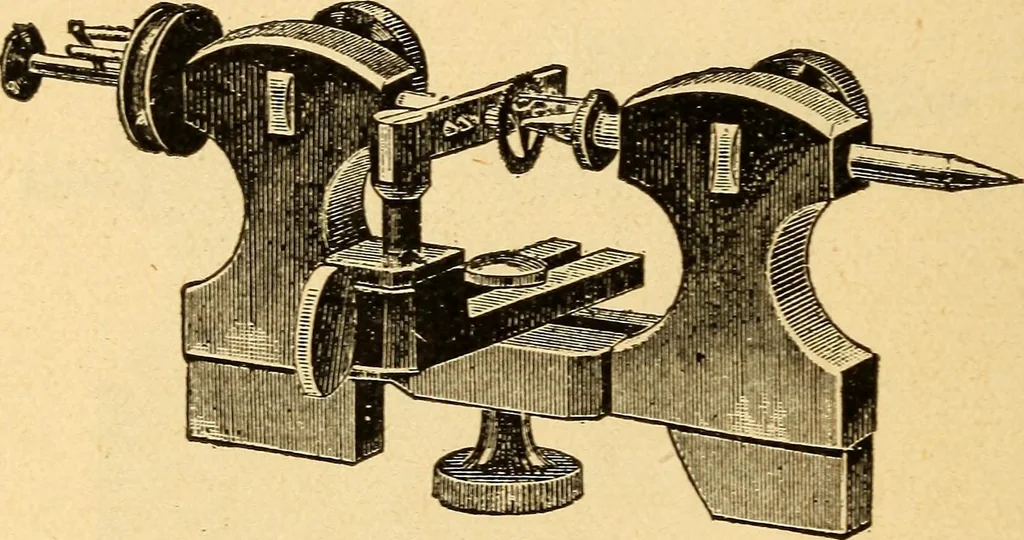

with its bindingscrew. The operator selects a suitable cone on the plateheld in the T rest holder and centering it from the backhe fixes the pinion in its place. The pin which runs fromthe left hand runner through the wheel is used to preventthe work from rotating while being drilled. He now… … Fig. 10. Dracip Lathe Ready to Drill Pinion. Mr. Charles S. Moseley, inventor of the split-chuck,as used to-day, originated that useful device in 1857 or1858, to be used upon a solid spindle lathe by substitutinga hollow lathe spindle and using a solid rod as the draw-inspindle. These lathes were…
