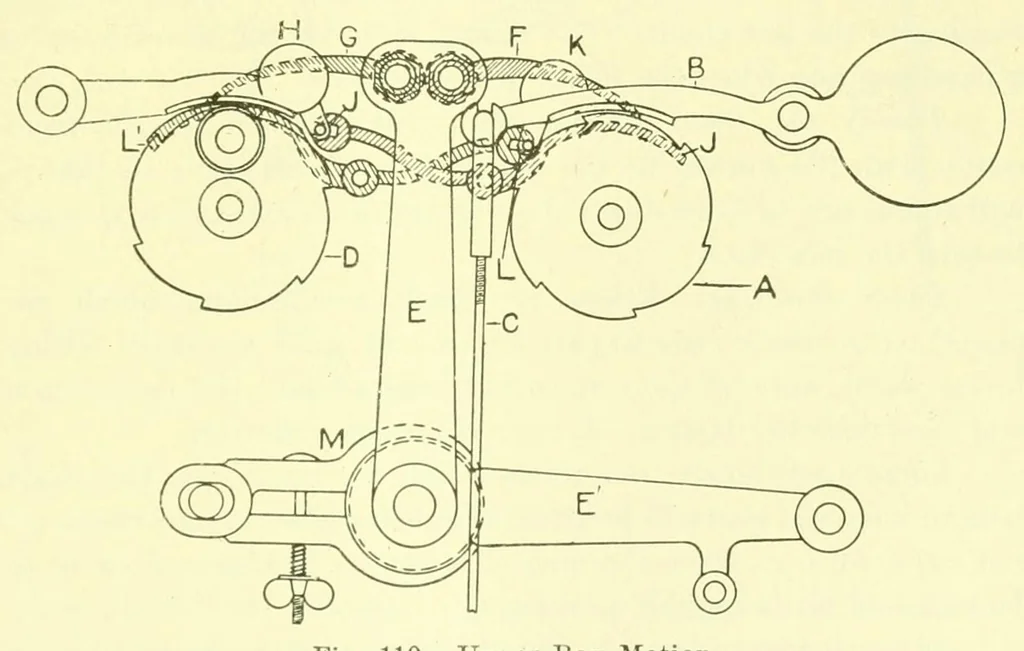

it is lettered E. There are two eonueeting rods, ouo for eaeh lever. I). ^Iidtiplyhig ratchet which is fixed to the multiplier chain ])avi'el. E,E'. Ell)ow lever. F, G. Driving pawls which are niounte(l on the upper end of E aiul work in opposite directions. H. Small k'N'er which rests on the… … Fig. 110. Upper Box Motion. The motion is diiven thidugh a connecting rod A\'ith a discon- necting device from a si 1 ell cam fixed on the pick-camshaft. A stud is bolted to the loom side, forming a bearing for one end of a small lever which carries two studs at the other end, one on each side. One…
Weaving
