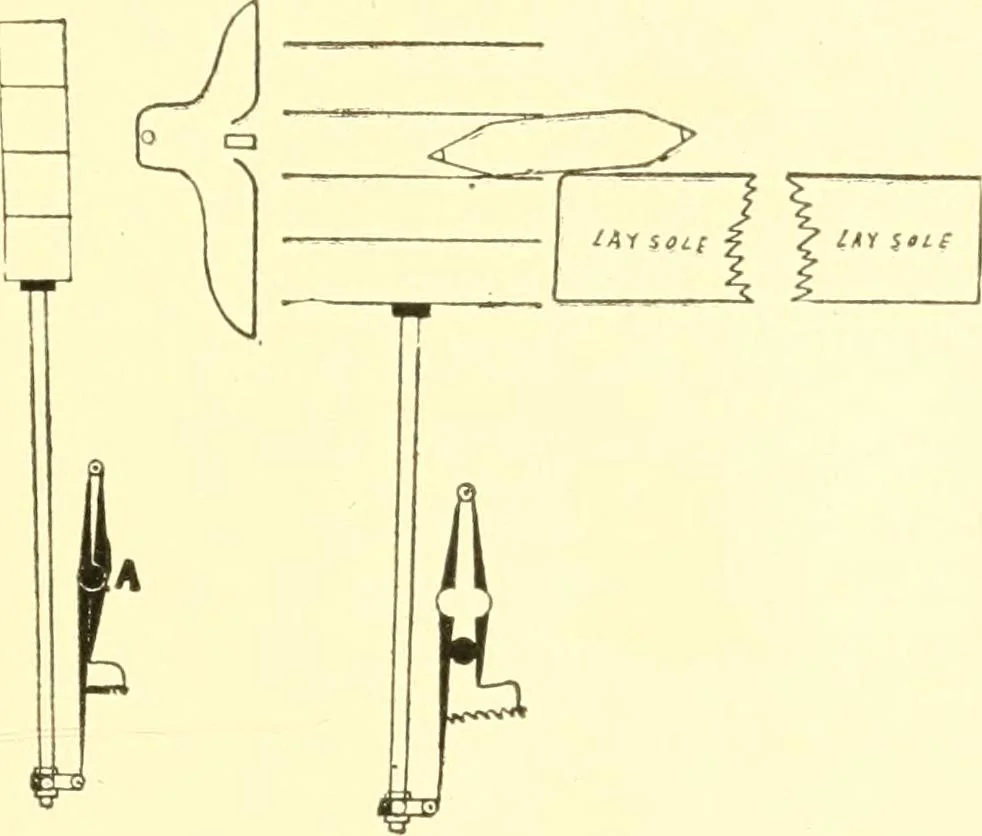

of the pins, which, if of sufficient strength, will pre-vent the cam fr<an moving out of position after being changed, BKEAKAGK PKEVEA TOKS. 51 but if the spring is weak the small gear will partly turn overand be caught by star gear. Spring lever is shown at K,Fig. 5. Another breakage preventor… … l•i^^ lo and 14. s))ring clamp with the stud in elamp marked A. If the shut-tle should be trap])cd betwccu the lay sole and boxes as boxesare being raised or lowered, tlie stud will be forced out of its])osition and no danuige will ]xi done to either shuttle orshuttle boxes. Fig. 14 illustrates the…
