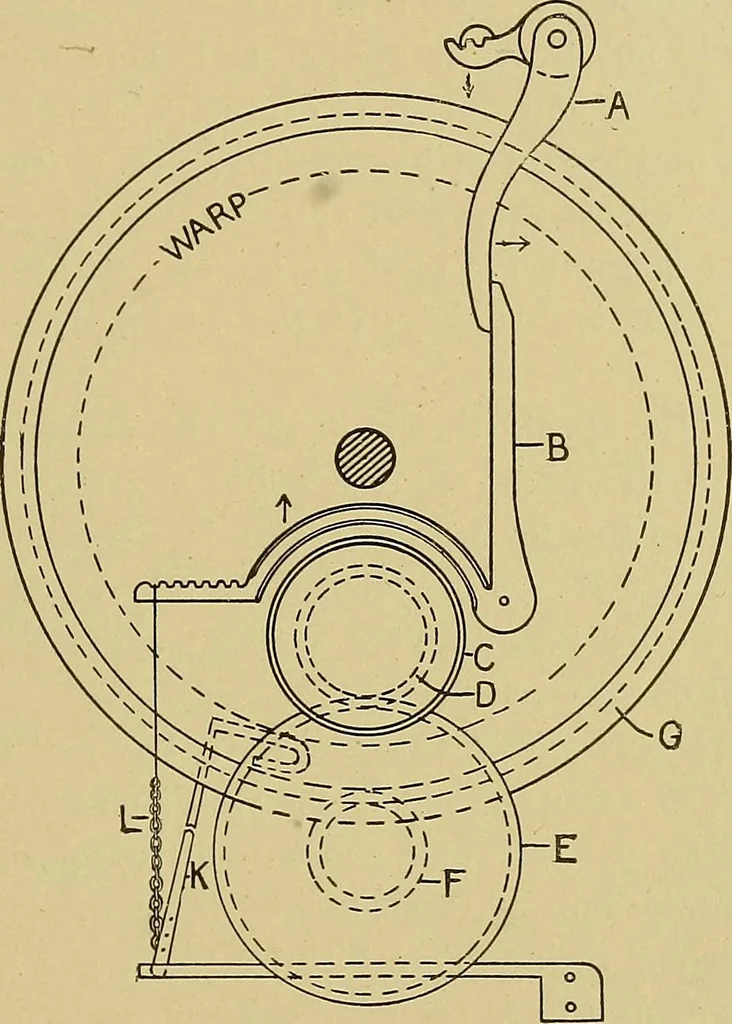

AVING. 189 uneven cloth.) Fig. 94 shows very clearly the whole motion ;the upper spring K, is the one which is changed to obtain the dif-ferent tensions on the warp, by loosening the small set collar andcompressing the spring. In this way more tension is added to thewarp, while the opposite will… … Fig. 96. Friction and Gear Let-Off. moved an equal distance to the opposite side. The compressionon the lower short spring K^, (which counterbalances the oscilla-tion of the whip roll and the rebound of the top spring) is gov-erned by the stoutness of the top spring. The diagram gives avery good…
