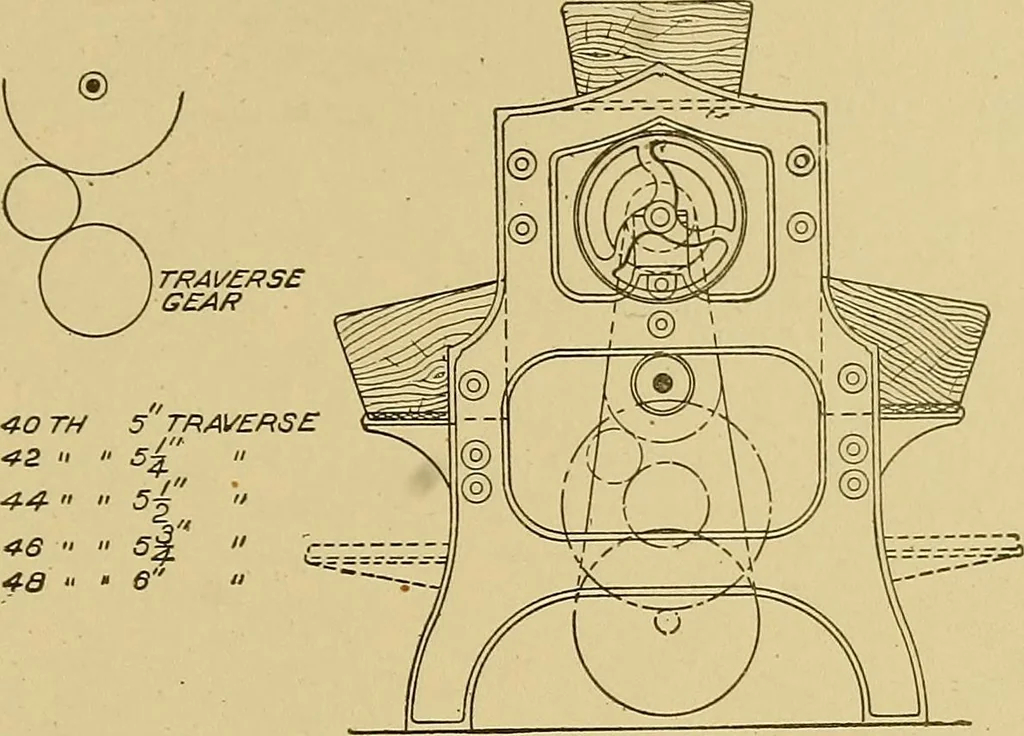

used by the builder rail traveling more slowlyat the middle of the traverse, and in this way allowing moreyarn to be placed on the spool at this point. The building motion is as follows (see Figs. 3 and 4): A6-tooth pinion, A, imparts motion to the mangle gear, B ; on the 14 W^ARP PREPARATION. same… … END VIEW OF SPOOLER. machine to the other. At different phaces on this shaft are smallpulleys, to which are connected the chains that lift the builderrail. The mangle gear has a reciprocal motion, owing to the JL
