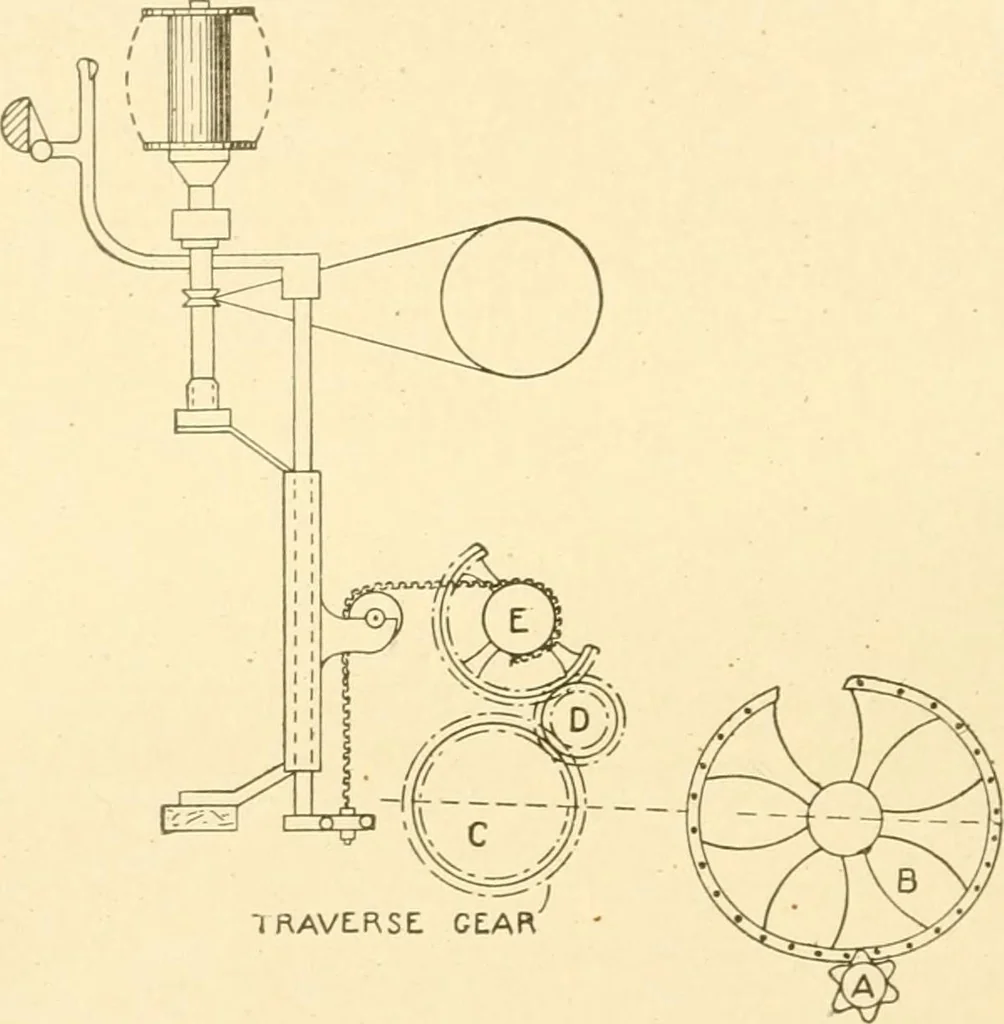

tsattention instantly. Again, the band which drives a number ofspindles lasts much longer than the single band. 13 WARP PREPARATION. Building Motion. There are two distinct kinds of buildingmotions. One builds a straight spool, the other builds a convexor rounded spool. The latter is by far the… … Fig. 3. ,\afuu\ _ TPAV£RSEU G£/iR PLAN OP GEARS. convex shape is caused by the builder rail traveling more slowlyat the middle of the -traverse, and in this way allowing moreyam to be placed on the spool at this point. The building motion is as follows (see Figs. 3 and 4): A6-tooth pinion, A,…
