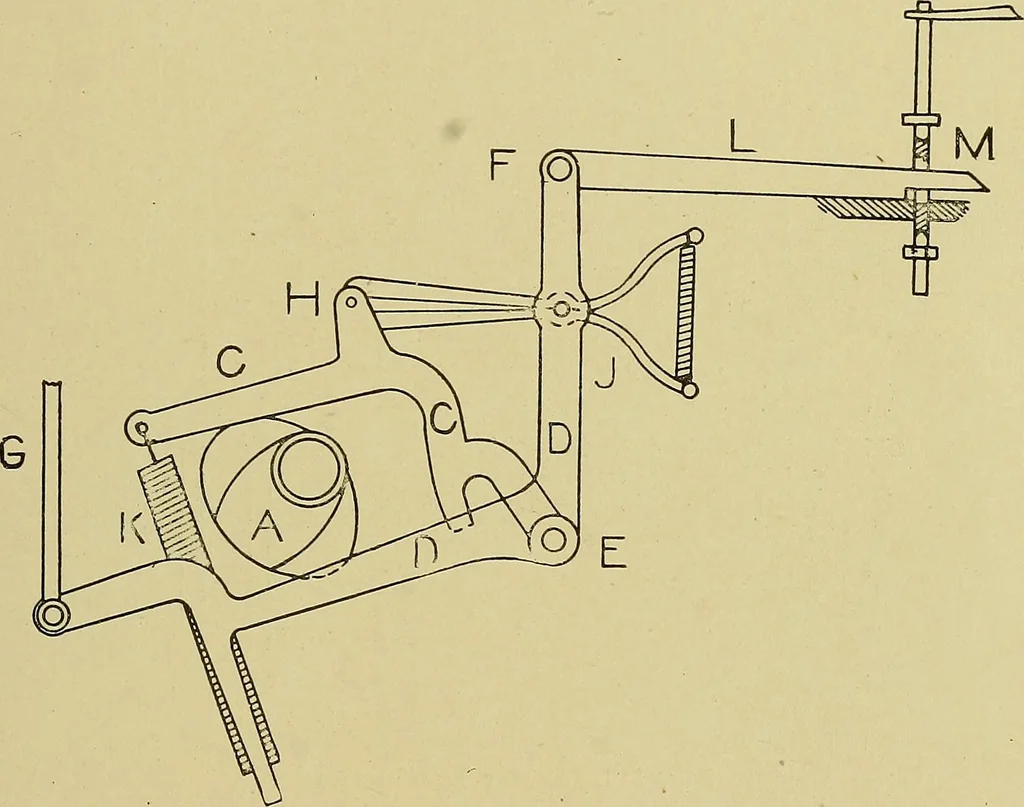

n the filling breaks, the fork-slide draws backand lifts a finger which is also in contact with the slotted bar, M,thns raising the slotted bar so that as the slide is driven forwardthe catch comes in contact with the bottom of the slot, with theresult that further forward movement is prevented,… … Fig. 116. Disconnectiug Device. ratchet gear on the filling chain barrel, and all operation of the boxmotion ceases. While the elbow levers are disconnected, thetension spring, K, is extended, and it will draw the upper elbowlever back into position when allowed to contract; this is calledthe…
