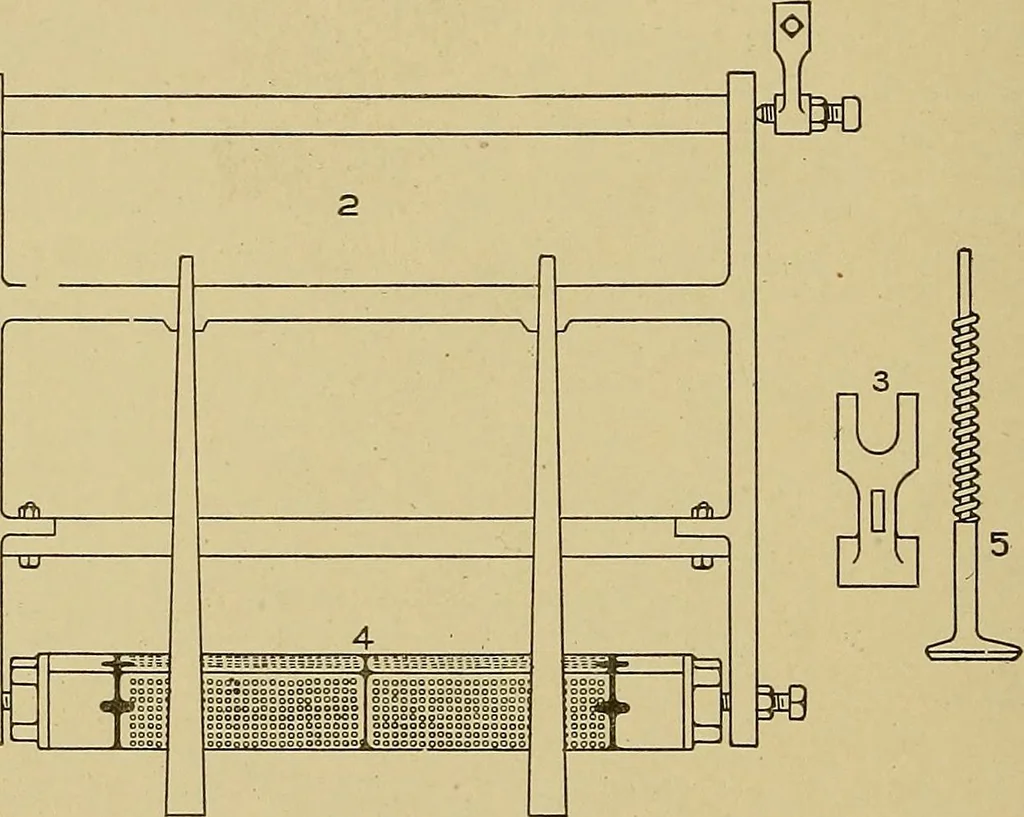

as follows: (a) Two small arms are fixed at the top of the machine, oneat each side. Two pointed set screws w4th lock nuts are set in thearms and the batten or swing is supported on these points. (b) The batten, which is in the form of a square iron fra,me.(6) Two cups set in the batten frame,… … K Fig. 16. Details of Batten or Swing Cylinder Motion. upwards against the cups, are two set screws whose purpose is toraise or lower the cylinder. (d) The cylinder. This is a square prism with a numberof holes bored on each side to correspond with the needles in themachine. On each of the four…
