Wiring diagrams of electrical apparatus and installations (1913)

McGraw-Hill · New York, McGraw-Hill Book Company · leaf 131

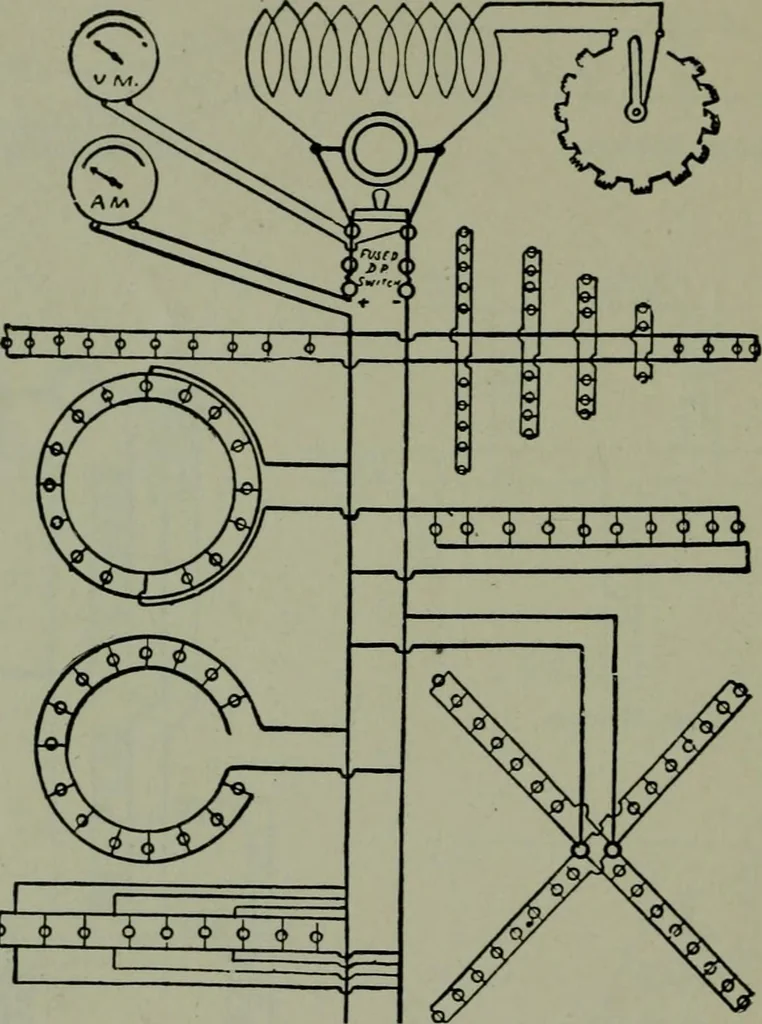

An illustration from Wiring diagrams of electrical apparatus and installations, 1913, leaf 131 — Three-Wire Central StationDistribution Closet System. Fig. 195.—Distribution systems. 120 WIRING DIAGRAMS OF ELECTRICAL APPARATUS … f » <^ <> 6 <;> •<{, 4 ,^^^ Two-Wire Distribution.Fig. 196.—Distribution systems. CONSTANT POTENTIAL DISTRIBUTION 121
