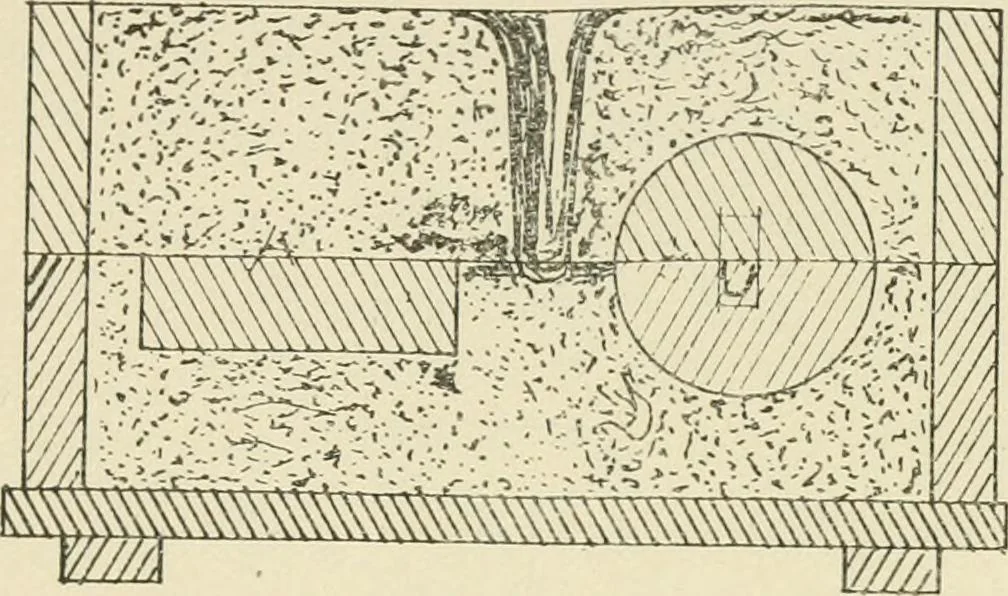

Fig. 13. Fig. 13 (a) the part of the mold below that line being in the nowel ;in this case all the mold will be in the nowel, the copeforming the top surface only. The next in point ofsimplicity is known as a Simple parted pattern, and isrepresented by Fig. 1, on page 6. In a mold made offthis…
