Woodwork for the grades for use in manual training classes (1912)
Selden, Frank Henry · Valley City, N.D., The Maudslay press · leaf 224

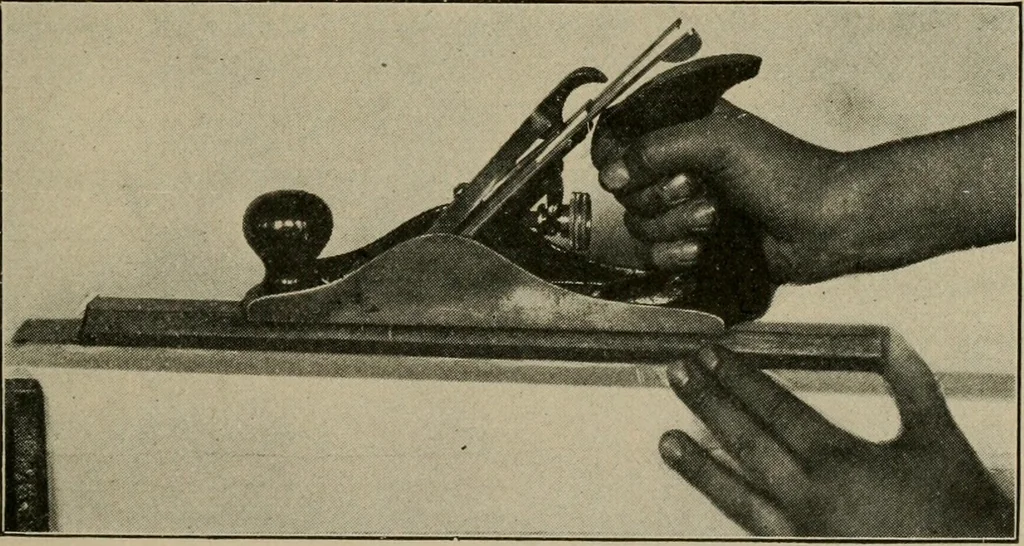

Fig. 306—Planing an Octagon lines so as to easily distinguish the original four sides after thecorners have been planed off. Test every side by measuring with the rule, holding it in … Fig. 3 0 7—Planing an Octagon 222 WOODWORK FOR THE GRADES the same manner as in measuring the chamfer (Fig. 86). Allthe sides should be of the same width. If they are not, lookcarefully to find where the mistake is and rectify it ifyou can. Test the octagon by holding the trysquare the same as…
Woodwork (Manual training)
