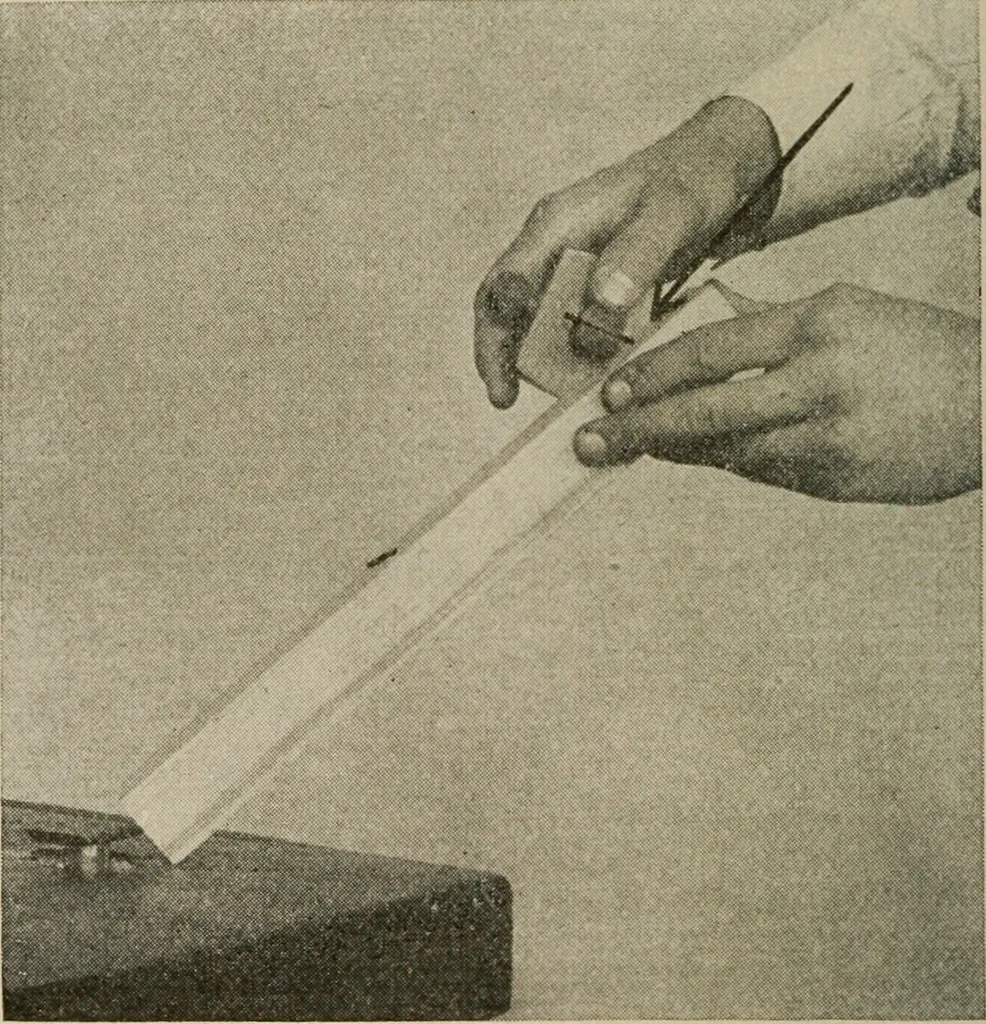

urface Lined heads are called dimension lines. Notice that each line hascna arrow head at the lower or border line of the figure and onearrow head atan inner line.This designatesthat the figureson the dimen-sion line tellthe distancefrom the edgeto that line. The % inchspaceissosmallthat there is… … Fig. 49—Drawing Gauge Line WOODWORK FOR THE GRADES 47 between the two lines, in line with the two arrow heads.Study this drawing until you are certain how the gauge linesare to be drawn. The line ^ inch from the face-edge isthe easiest to draw, and therefore you may set the gauge toy2 inch, holding…
