Woodwork for the grades, for use in manual training classes; fully illustrated with three hundred half-tone engravings from actual shop practice, and many working drawings of educational shop problems (1913)
Selden, Frank Henry · Chicago, Orr & Lockett Hardware Co · leaf 215

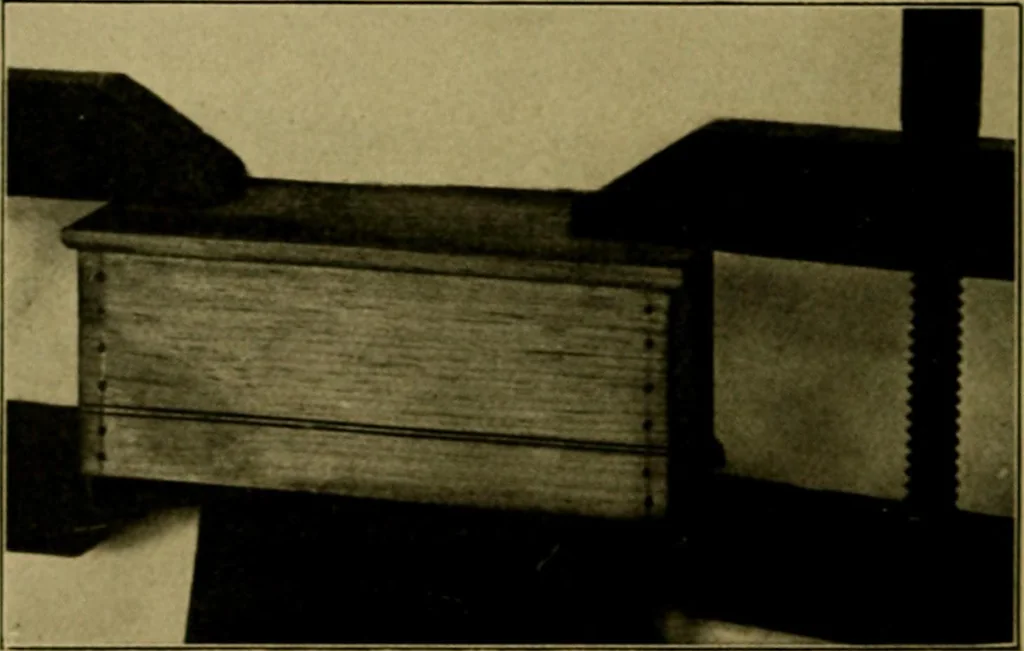

raw a pencil line on 212 WOODWORK FOR THE GRADES the face-side at which to locate the inner surface (the facesurface), of the end piece. Place the pieces as shown inFig. 288 and drive one brad near the front edge. Examine itto see that it is even with the line on the face-side and thenapply the… … 5 Box in Position for ■ Place the face-edge of the other side against the one whichhas been nailed, (Fig. 291) and mark the location for eachend. Draw lines across with the try-square and pencil, andalso lines for the brads on the outside and nail this piece tothe ends. Test the piece with the…
Woodwork
