Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 142

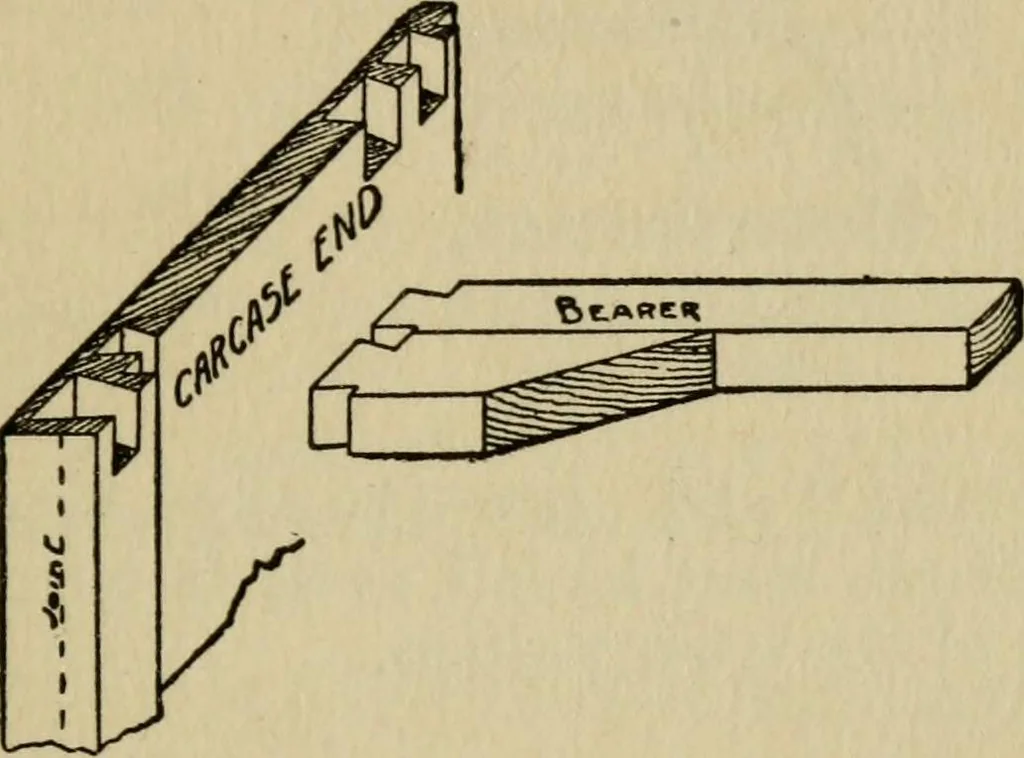

upholstering the top ;this shows the application of dovetaiUng when the timber 130 The Dovetail Joint is too small to admit of dowelling or tenoning. Plan andpart sketch are shown. Fig. 301.—An everyday method of jointing circular-fronted cabinet door frames. Great care must be takenin setting out… … Fig. 302.—Dovetailed Bearer Rail showingthe Bearer for the Back. the carcase end. Other examples, such as the top of abookcase to the sides, will suggest themselves. Fig. 304.—Side view of a jewel drawer with a mouldeddrawer front as used on dressing tables, etc. This showsthe necessity of bevelled…
Woodwork · Carpentry
