Exercises in wood-working, with a short treatise on wood; (1890)
Sickels, Ivin. [from old catalog] · New York, D. Appeton and company · leaf 91

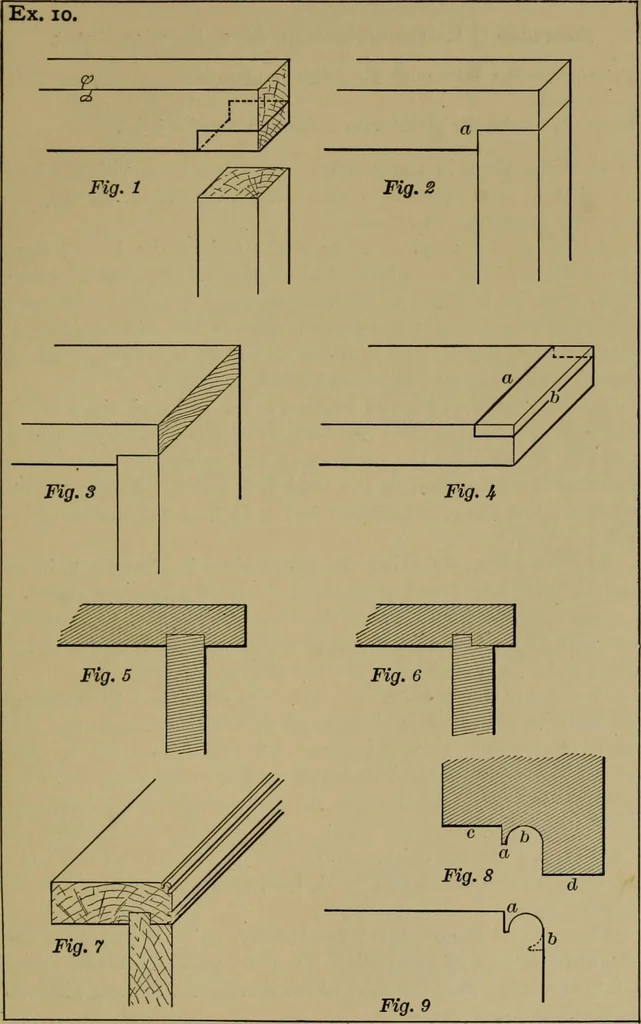

r cutting a I bead is shown in Fig. 8; the iron cuts onlythe depth «, and the round h ; the portion c of the sole acts as astop to regulate the depth, and (7 as a guide against the edge of theboard. The form cut is shown at a, Fig. 9, and is called a singlebead; by reversing the plane and cutting… … 90 SIMPLE JOINTS. Exercise 1 1 .—Construction of a Mortise-Joint. Materials.—ThQ sticks of Exercise 9, after cutting off the half-joint.Work.—To unite the pieces with a through mortise-joint. Hold the pieces in the position shown in Fig. 1, with the facestoward you. The upper is to have a tenon…
Woodwork (Manual training) · Wood
