Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 201

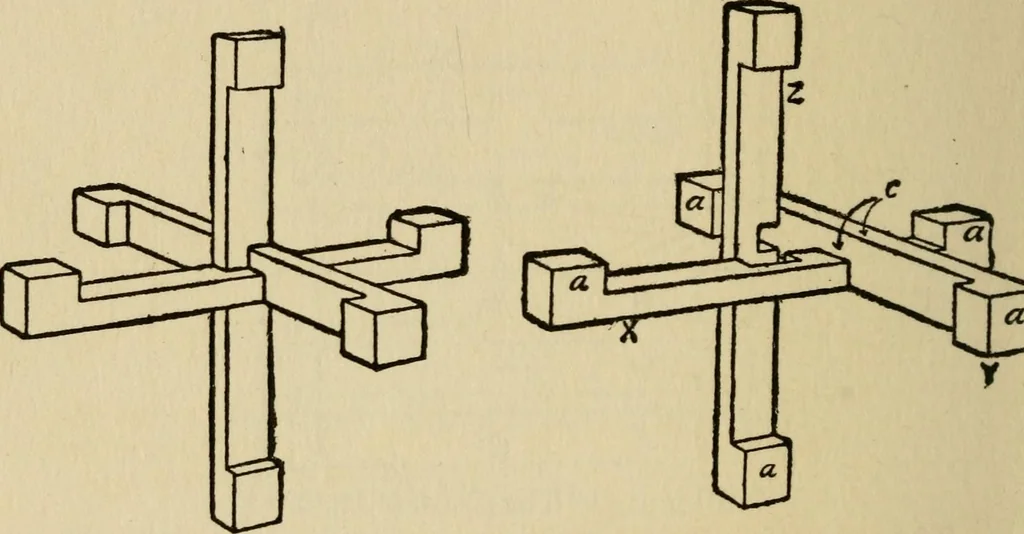

stfirst be joined, as those form the skeleton framework ofthe article. Fig. 414 shows them in position, but as it is 189 Joints in Woodwork a puzzle in itself as to how they can be got thus someexplanation is necessary. First Stage.—First take the bars X and Y (see Fig. 413)and arrange them as… … Fig. 414.—^The Three CentralBars in Position. Fig. 415.—How to Adjust theBars. (Note position cfprojecting ends, a.) slot of Z, however, must remain above the slot of X. Thenslide the bar Y along to the centre, so that the part lettered 0sUps into the little slot of bar Z. This may seem confusing…
