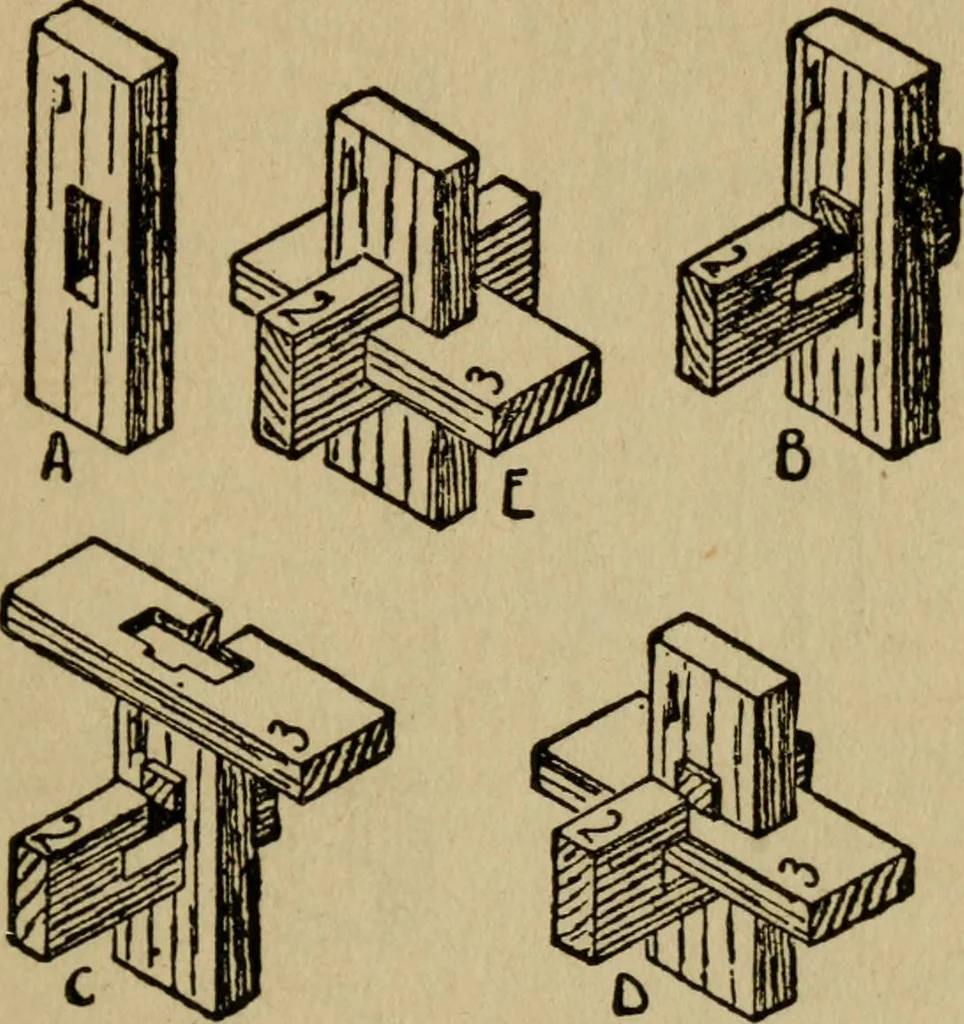

26. Inthe first place, hold No. i piece upright as shown at A,then take No. 2 piece with slot uppermost and push itthrough the opening in No. i piece until the nearest side 198 ■A Puzzle Joints of the slot projects J in. as indicated at B. Next placeNo. 3 piece on with the slot at the back as shown… … Fig. 426.—How to Put Together. In this puzzle the parts should fit together fairly tight,but should not be too stiff. SIX-PIECE JOINT PUZZLE. Fig. 427 illustrates a six-piece puzzle joint, similar insome respects to Fig. 421, but in this case the piecesB. C, D, E and F asre cut sHghtly different.…
