Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 354

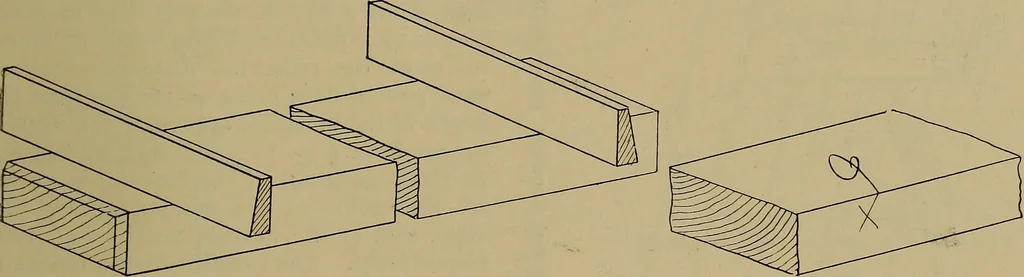

e edge is shot straight, use a longstraight-edge, or lift the end of the stile near-est the worker to the level of one of the eyes,closing the other, when any inequality willbe seen along the edge and must be planedoff accordingly. Now gauge the stuff tobreadth along its whole length, plane ofTdown… … Fig. 1086.—Application of Winding Strips. Fig. 1087.—Face and Face Edge Marks. how much the timber twists or is in winding.A practical joiner can test the stuff out ofwinding by the eye alone, or, if the stuff isvery long, by laying his jack- and trying-plane at either end and boning from them.Take…
Carpentry · Joinery
