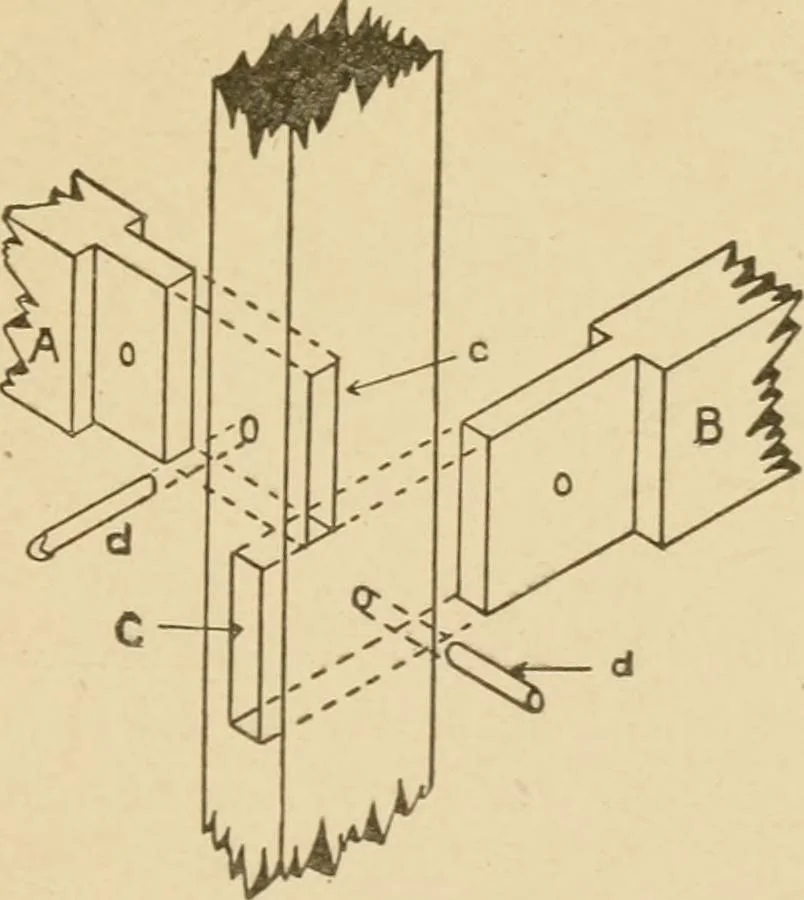

t to fit amortise cut in the sill, and mor-tises c c, Fig. 63, are cut in thepost at the proper level to re-ceive the tenons cut in the girts.Holes must also be bored toreceive the pins d d which fasten these members to the post. The braces are often only nailed in place, but it is much betterto… … Fig. 63. Mortises in Corner Post. 53 46 CAKPENTRY In the case of a billojii fniiiie no mortises need be cut in theposts for the girts or braces, as they are omitted in this frame; butthe post must be notched instead, as shown in Fig. 65, to receivethe ledger board or ribbon and the light braces…
