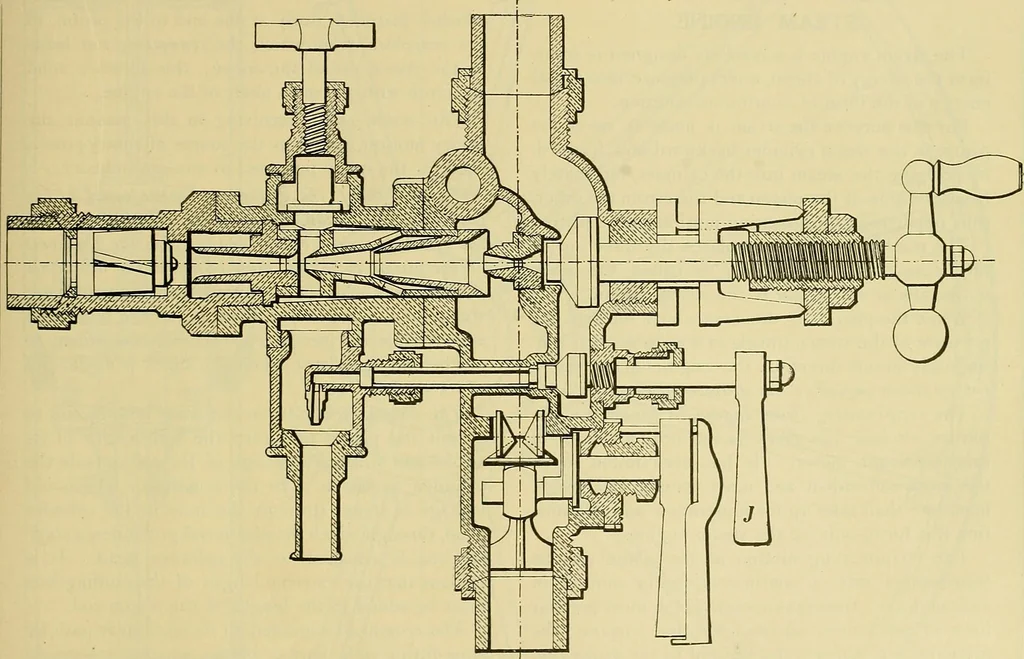

losingthe jet valve, so as not to break the vacuum of theinjector. It will be noticed that the injector is put togetherin such a manner as to render feasible all repairswithin by unscrewing the connected parts. Thenozzles may have to be replaced from time to time,as they have to withstand the great… … Fig. 518. 362 ROGERS DRAWING AND DESIGN. STEAM ENGINE. The steam engine is a machine designed to trans-form the energy of steam, underpressure, into actualenergy in the form of continuous rotation. For this purpose the steam is made to move thepiston in the steam cylinder backward and forward,by…
