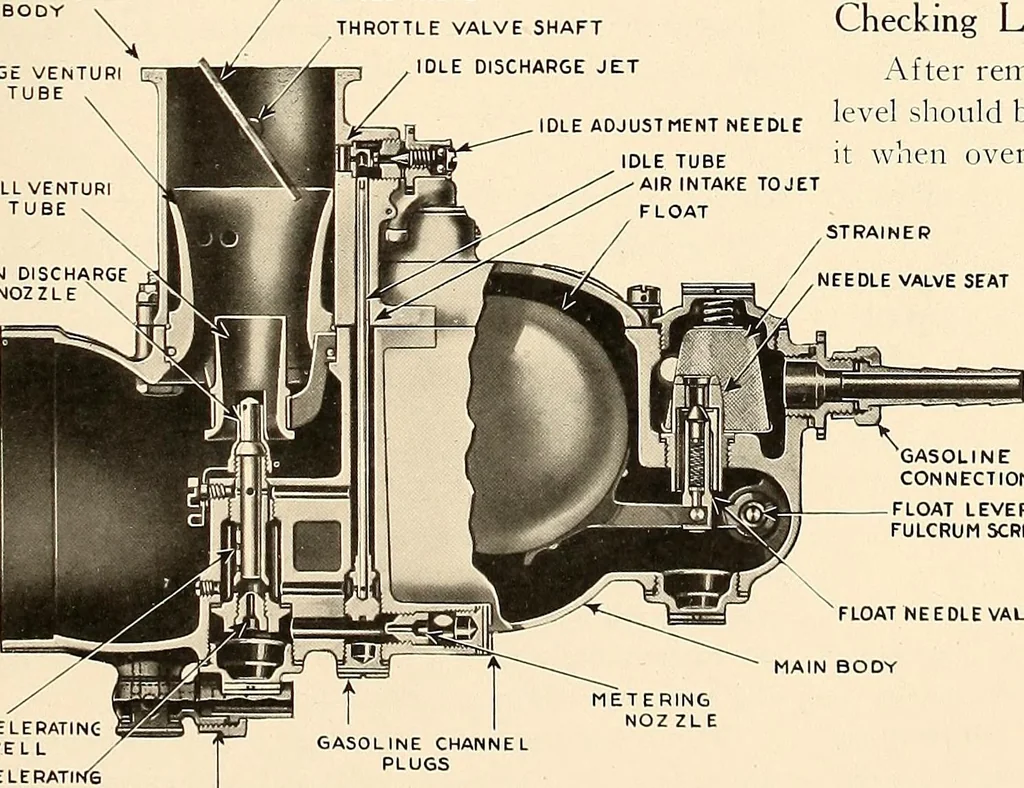

in one of the older car-buretors. However, if the float is removed, in replacingthe float lever fulcrum screw be sure that a 1/32 inchhard washer is put beneath the head. If this is left outthe screw will sink in far enough to bind the float lever. After replacing a float make sure that it… … ACCELERATING WEL L ACCELERATINGWELL NOZZLE A|R GASOLINE CHANNELPLUGS HORN CONNECTION Section of Stromberg carburetor. See also larger cuts on pages 2 I and 22 Checking Level After removing the float valve seat or the float the fuelidle adjustment needle eve^ snould be checked, and it is always…
