Yarn and cloth making; an economic study; a college and normal schools text preliminary to fabric study, and a reference for teachers of industrial history and art in secondary and elementary schools (1918)
Kissell, Mary Lois · New York, The Macmillian company · leaf 235

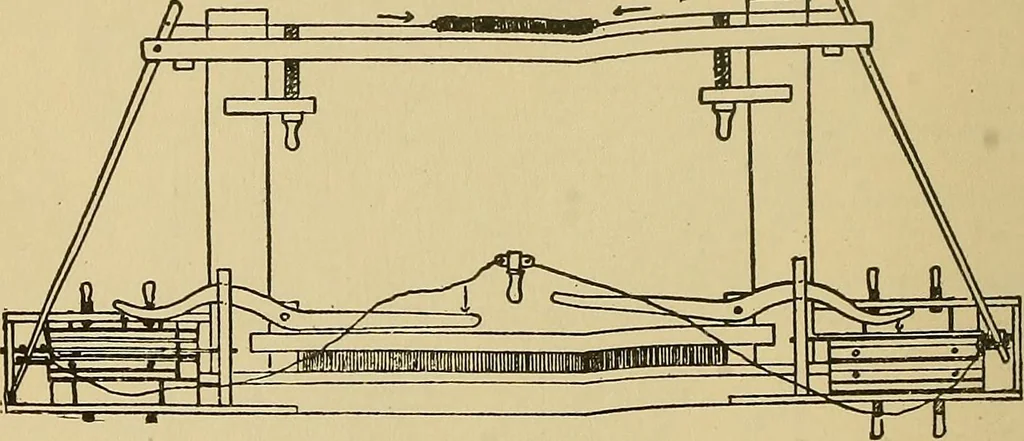

as required by the hand-shuttle, beatsup the weft with the reed-batten. 178 YARN AND CLOTH MAKING at the same time if the drop-box-shuttle is inuse, drops or raises the end boxes so that theshuttle desired is on a level with shuttle-race. 5. shuttle deposits another line of weft. 6. batten beats up… … Fig. 76. — Drop-box Fly-shuttle The shuttle here works as in Fig. 75, but there are added for shuttles ofdifferent colored yarns two tiers of end boxes with a contrivance for raisingand lowering the boxes to bring them level with the warp shed as eachcolor is needed. Economic Gain In production:…
Textile industry · Spinning · Weaving
