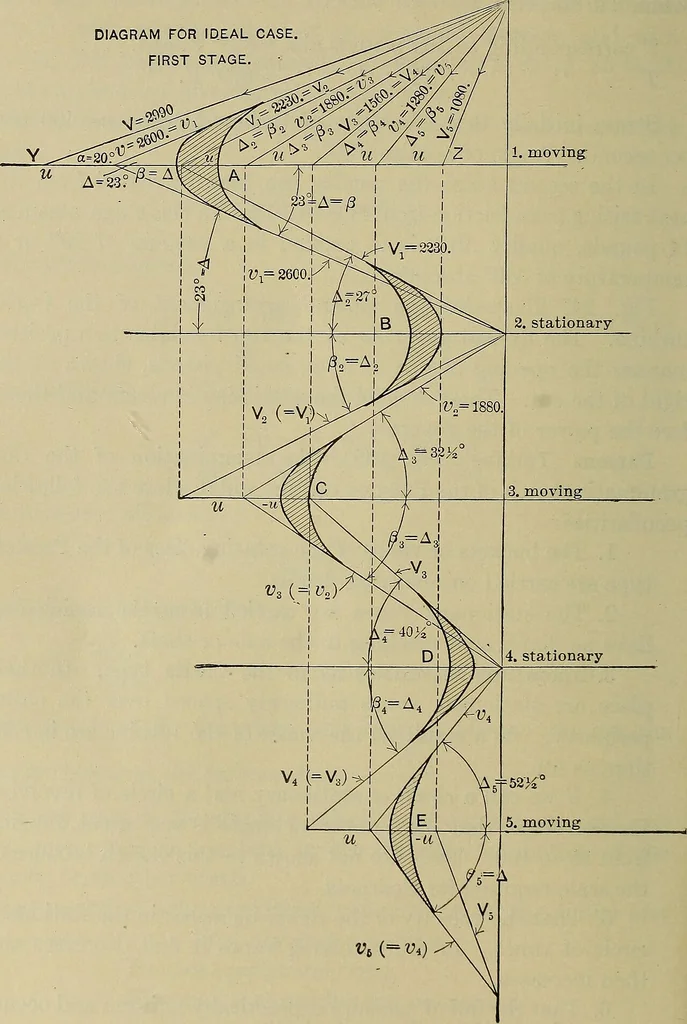

carried on revolving drums. 2. The stationary vanes are carried from the casing andhave no diaphragm reaching to the axle or shaft. 3. There are no nozzles as in the -Curtis type. In theirplace are stationary vanes uniformly spaced over the entireperiphery. As a result all the vanes of the turbine… … *.(=«) Fig. 244. SUPERHEATED STEAM AXD STEAM-TLRBIXES. 467 DIAGRAM AS MODIFIED BY FRICTION LOSSES,FIRST STAGE.
