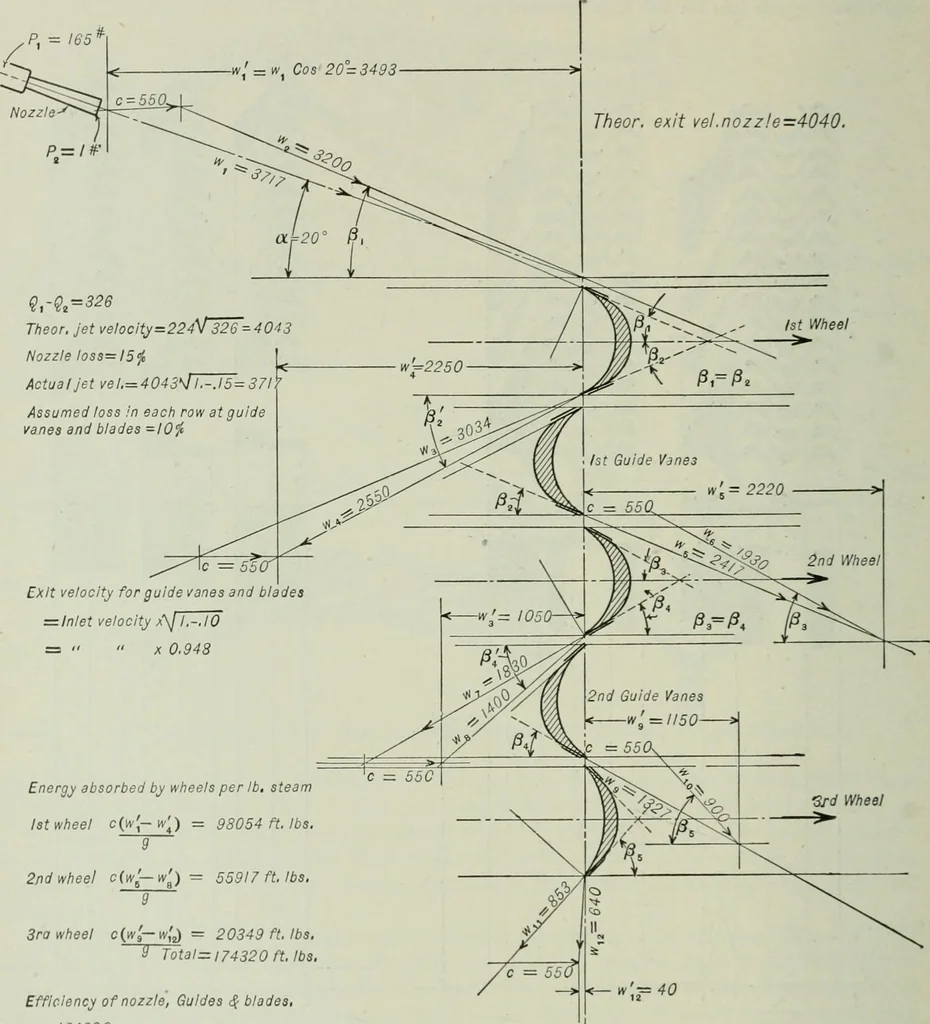

or vanes for the second stage. 314 POWER PLANTS AND REFRIGERATION The heat equivalent of the work absorbed by the second-stage wheels is now laid off on thevertical as EH; pass horizontally to the right to the intersection with the initial pressure line pafor the third stage, the condition being… … Exit velocity for guide vanes and blades=:lnlet velocity /\fr^= ■ X 0.948 Energy absorbed by wheels per lb, steam 1st wheel c(w[- w^) = 93054 ft. lbs.9 2nd wheel e(w^—wj = 55917 ft. lbs.9 3ra wheel c(w£-wl^ = 20349 ft. lbs,9 Total= 174320 ft. lbs. Efficiency of nozzle, Guides cf blades,r_ 174320…
