Perspective and geometrical drawing adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thomas H. (from old catalog) · Toronto, W. Briggs · leaf 122

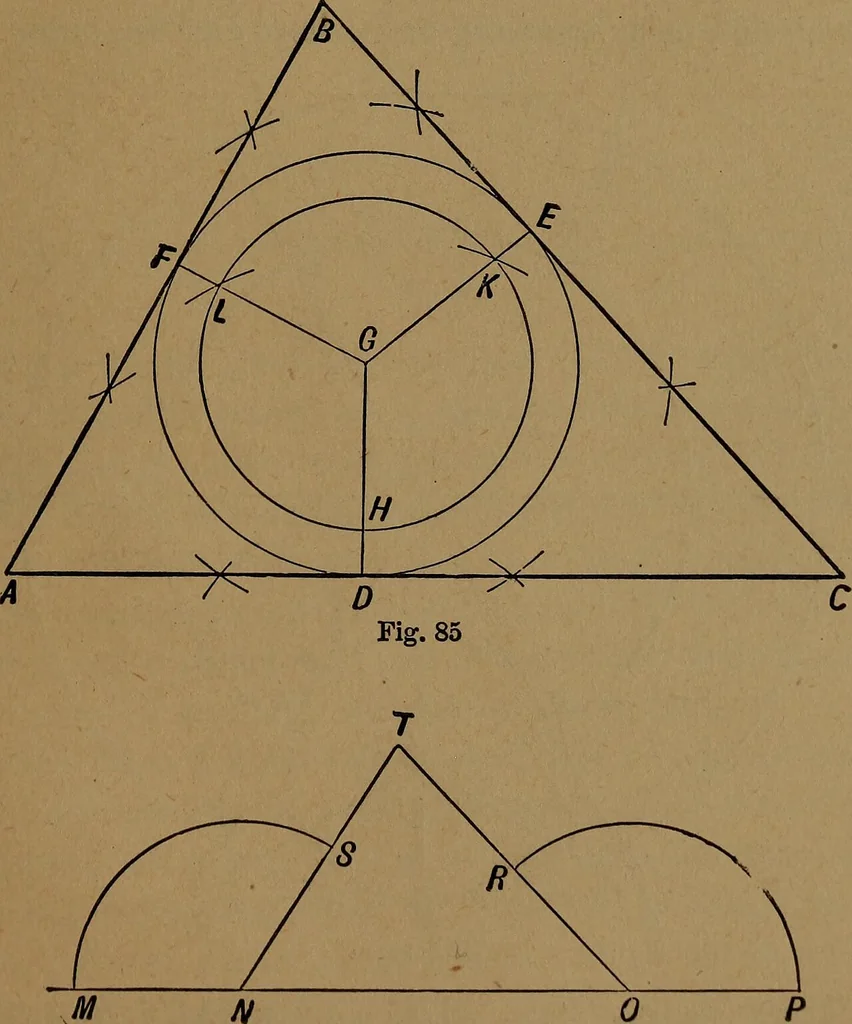

Fig. 84. GEOMETRICAL DRAWING. 117 Let BCD be given circle; at any point A in the circumfer-ence, with distance equal to radius, describe an arc, cuttingcircle in B and C; with centre C, and same distance describean arc, cutting circle in D; describe similar arcs with centresB and D; these arcs… … Fig. 86. Let DEF be the given circle and TON the given triangle;find the centre G, and draw any radius GD; at D, draw a 118 DRAWING. tangent to the circle. With centre N and any distance MN,describe an arc MS, and with centre O, and same distancedescribe an arc RP; with centre G, and distance equal…
Geometrical drawing · Perspective
