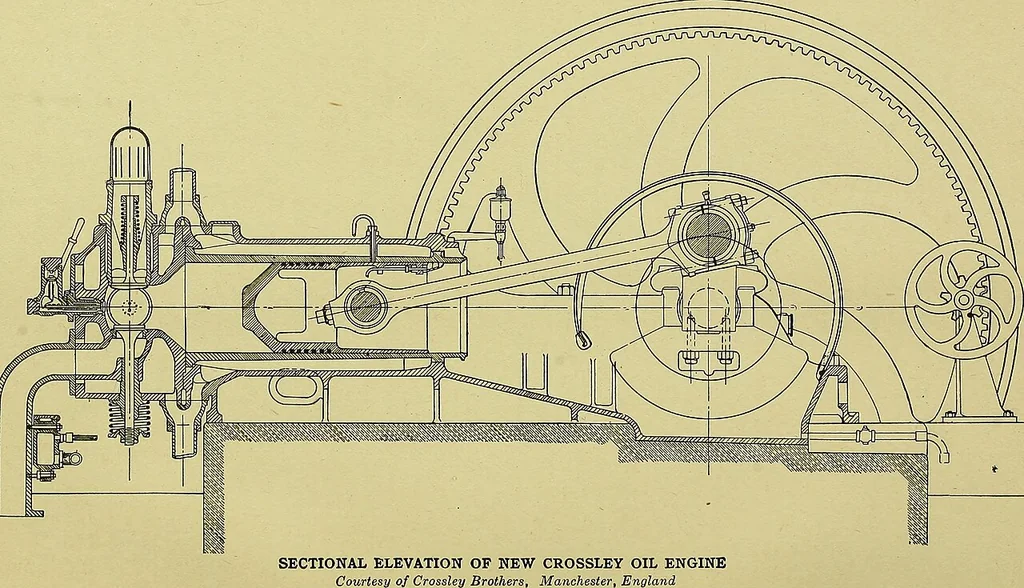

Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 9
eyes to visuaHze objects and measure distancesand their hands to draw with precision lines of uniform widthand accurate direction. They had to learn the rules of geomet-rical construction; the methods of representing plans and eleva-tions of objects; and the principles of orthographic and… … ?M//////mmffMMj^.>//j CONTENTS The page numbers of this volume will be found at the bottom of the pages;the numbers at the top refer only to the section. BLUEPRINT READING PAGE Introduction 11 Process of making blueprints ^ 11 What blueprints should show 12 General directions 13 Meaning of…
Mechanical drawing · Blueprinting
