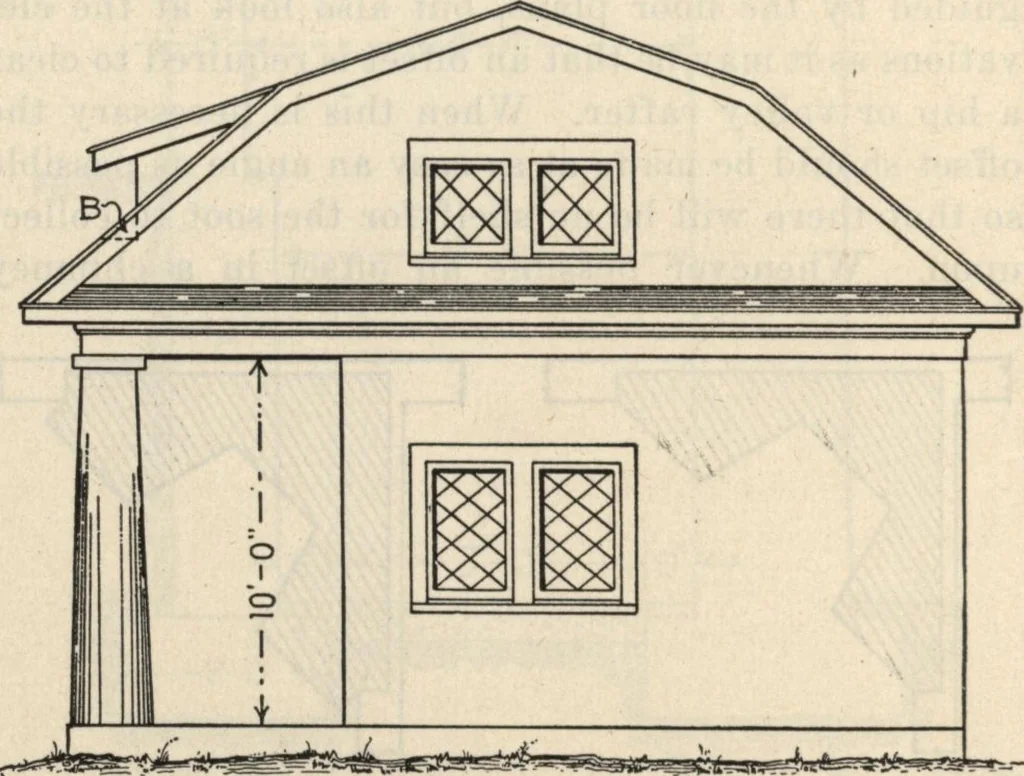

n in line with it; the soffitof the porch, however, is set back, as shown by thedotted lines. If the facia of the house and that ofthe porch roof is to be in the same line, without off-set, the floor of the porch and its foundation must beextended as shown in Fig. 127; this shows the soffitof the… … Fig. 123—Dormer incorrectly placed, due to wrong porchheight. MISTAKES IN READING PLANS 47 house. Fig. 128 shows anexample of this. The reasonfor this is that the width ofthe soffit should be the samewidth as the neck of thecolumn and the center of thecolumn and the center ofthe soffit should be in…
