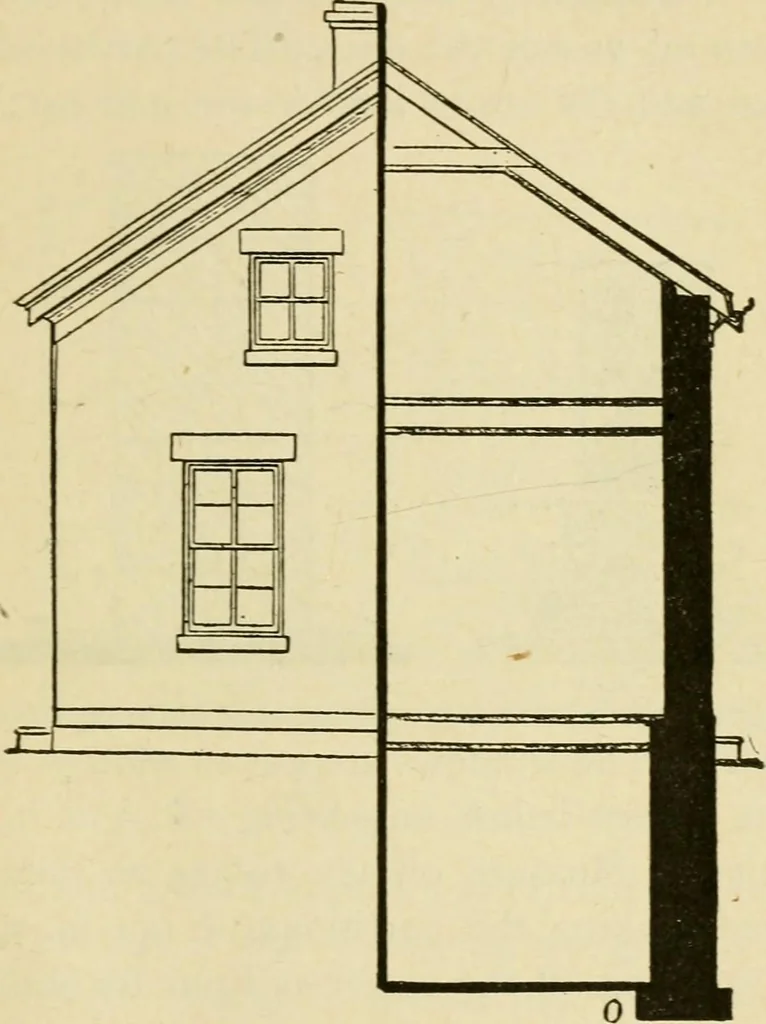

hree feet. The two door open- ^ 1 ^ a 1=31 L J C m 3 [ Fig. 103. Front Elevation. ARCHITECTURAL DRAWING SELF TAUGHT PLATE 7. Plate 7 exhibits a portion of cornice and roofof main building. This shows the construction,with roof boards and shingles, also the finishedportion of roof and cornice.… … Fig. 104. End Elevation and Section. R. S., directly over those in the cellar. Thestairs in cellar are directl} under the stairs asshown in this plan. The projections shown atthe doors are steps. 114 ARCHITECTURAL DRAWING SELF TAUGHT The plan shown at Fig. 102 is for the atticstory. A part of the…
