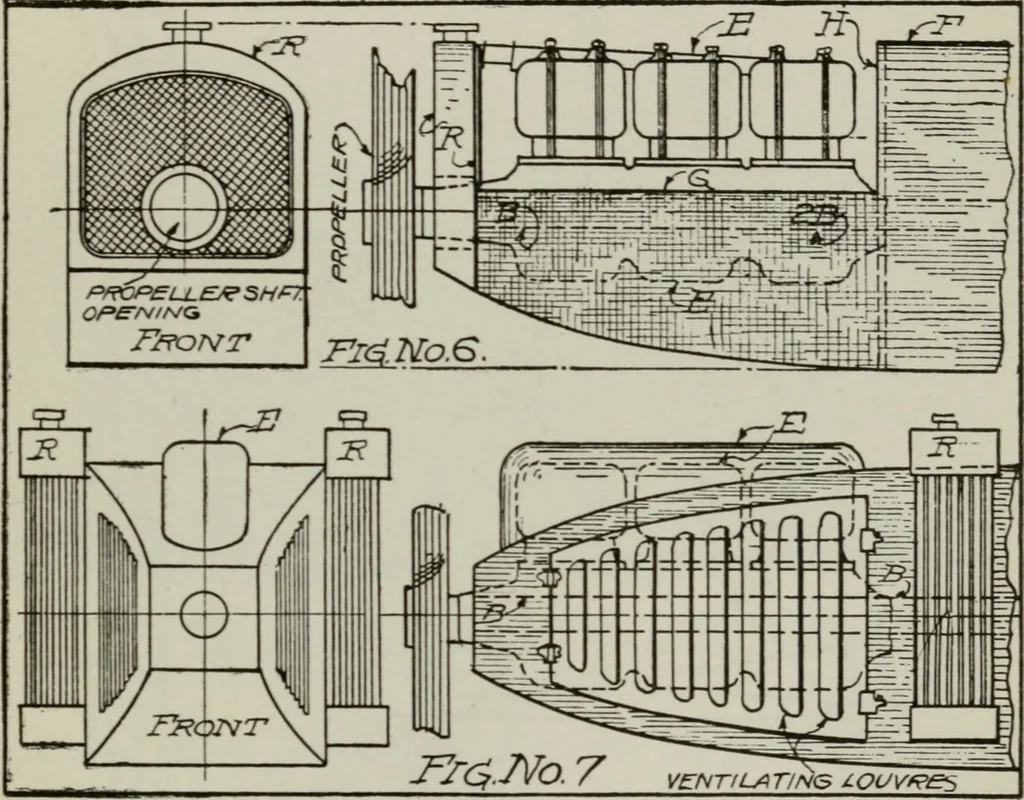

inders are not usually covered when FUSELAGE CONSTRUCTION 235 in flight. In the front view it will be noted that the radi-ators are arranged on either side of the fuselage. A side view of the H. and ]\1. Farman Fighter is shownby Fig. 10. This a very efficient French machine whichhas seen much… … Figs. 6-7, Various Motor Arrangements, and Radiator Locations. of cylinders, and in a position where it will cause the leastpossible head resistance. The fuselage is of excellent streamline form and showscareful study in regard to the arrangement of the powerplant. Unlike the majority of machines,…
