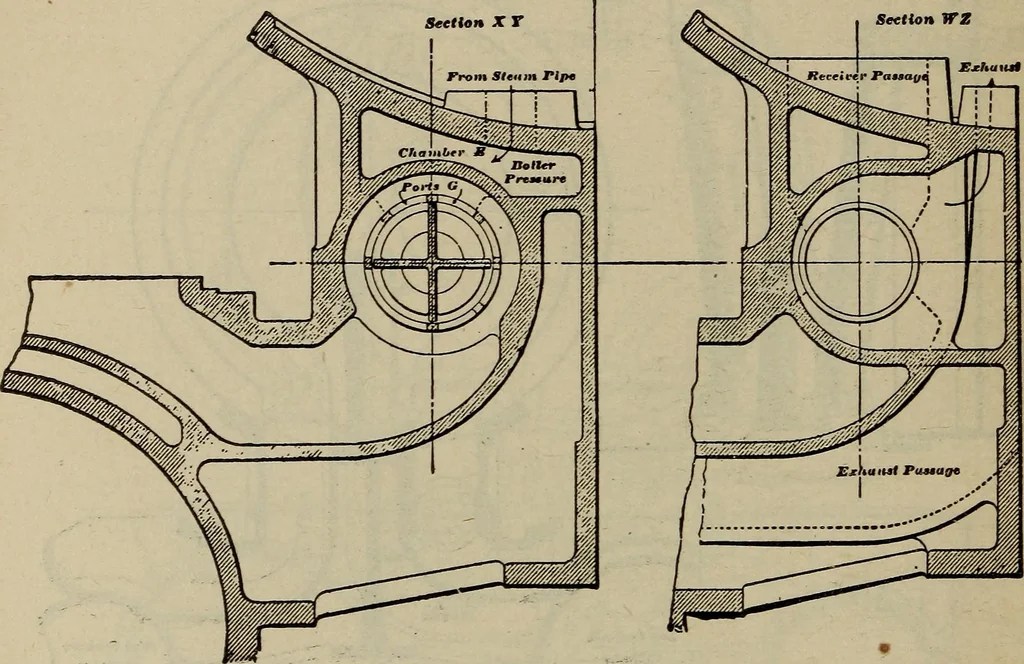

pressure of steam in thelow-pressure cylinder. 3iO LOCOMOTIVE ENGINEERING Poppet valves F and G are placed in connection withport E, one to prevent the escape of steam from thereceiver to pipe D when the locomotive is workingsingle expansion, and the other to close the passagefrom pipe D to the… … Figure 152 will be exerted on the intercepting and reducing valves in opposition to the springs, and they will assume the positions shown in Fig. 148. The ports of the intercepting valve A stand open to receive the exhaust steam from the high pressure cylinder, and deliver it through the exhaust…
