Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 276

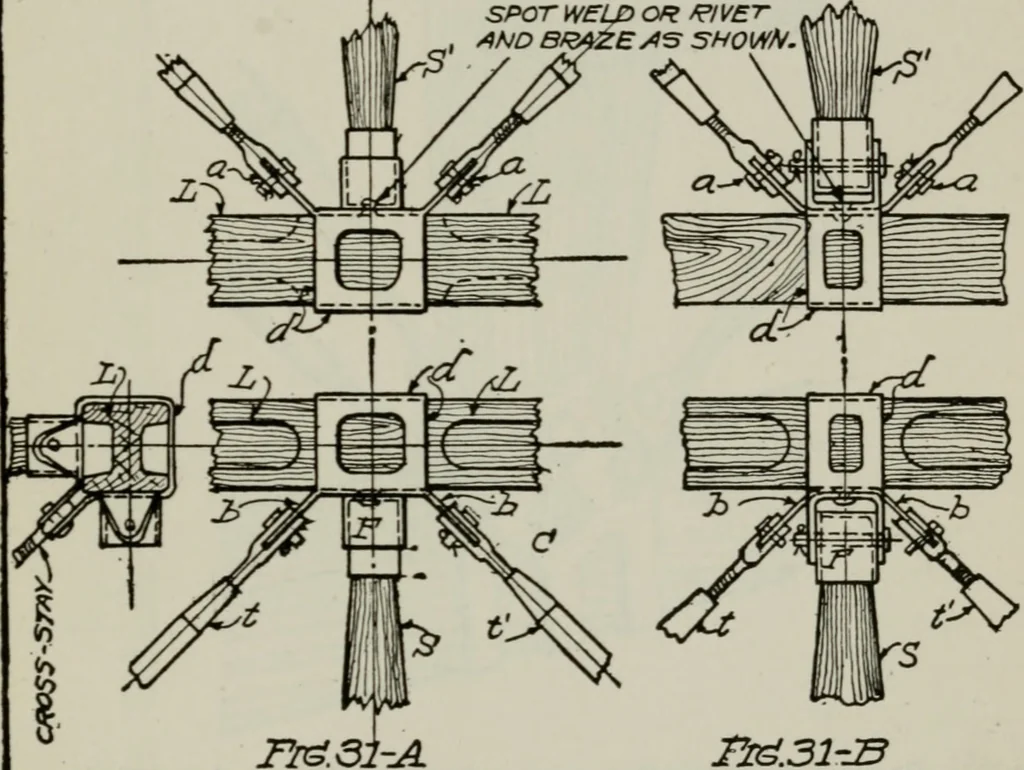

a fuselage strut fitting as used on the FUSELAGE DETAILS 267 Standard Type H-3 Biplane. We are indebted to AerialAge for this illustration. This consists of a sheet metalstrap of U form which is bent over the longitudinal andis bolted to the vertical strut. At either side of the strutare through… … n^.airs Fig. 31. Typical Fuselage Strut Fittings. monoplane is shown by Fig. 33, an example of a type inwhich the bolts are passed through the longeron member.This fitting is very light but objectionable because of thepiercing of the longeron. An Austrian aeroplane, the Hansa-Brandenberg, has awood…
