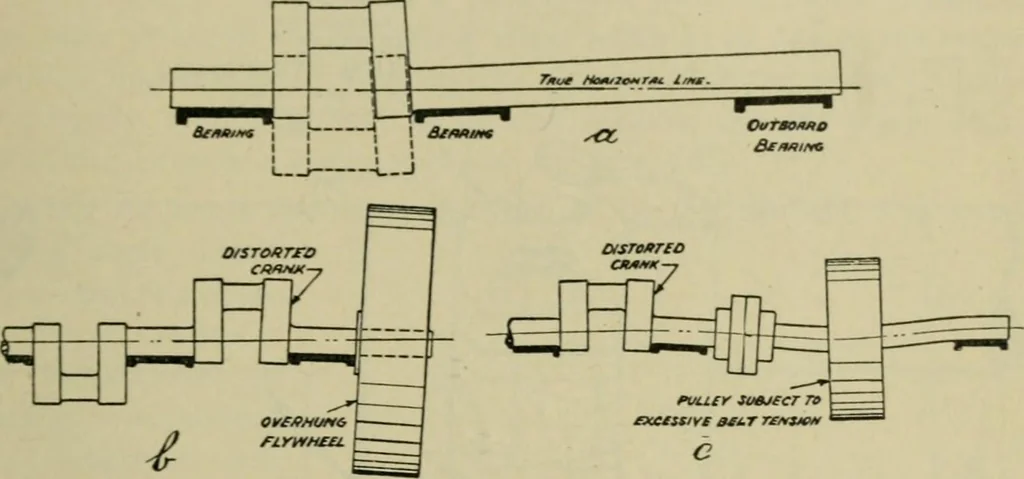

entform of the Straingage and Figure i (upper photograph) the originalinstrument. A brief discussion of the principles on which the II.SI.. Strainhas been developed will give a better idea of its purpose. The distancebetween the cheeks or webs of a center-crankshaft is not a constantvalue for… … Figure 2—Crank distortions (exaggerated for purposes of illustration). of the crankshaft. These three main causes of crank distortion areillustrated in Figures 2-a, 2-b and 2-c. These distortions may set upexcessive stresses in the material. It may not be amiss here to point out the difference…
