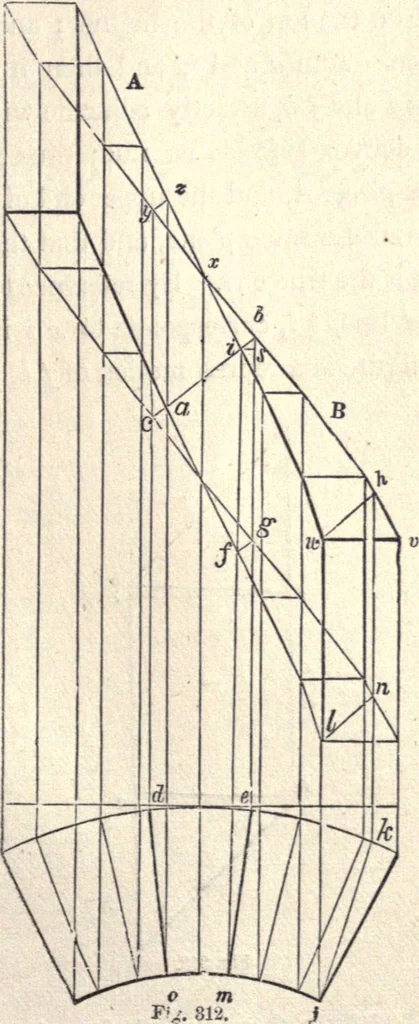

on the plan. The line, b h, therefore, on the top of the rail inthe helinet, is a true representation of e m on the plan, and k c onthe bottom of the rail truly represents d o. From k, draw k /,parallel to c 6, and from h, draw hf, parallel to b c; join / and6, also c and/; then c k I b will be a… … 356 AMERICAN HOUSE -CARPENTER. To show that the process followed in Art. 473 is correct, let doand e m, (Fig. 312,) be the direction of the butt-joint found as atFig. 306. Now, to project, on the top of the rail in the helinet, aline that does not radiate towards the centre of the cylinder, as jk,…
