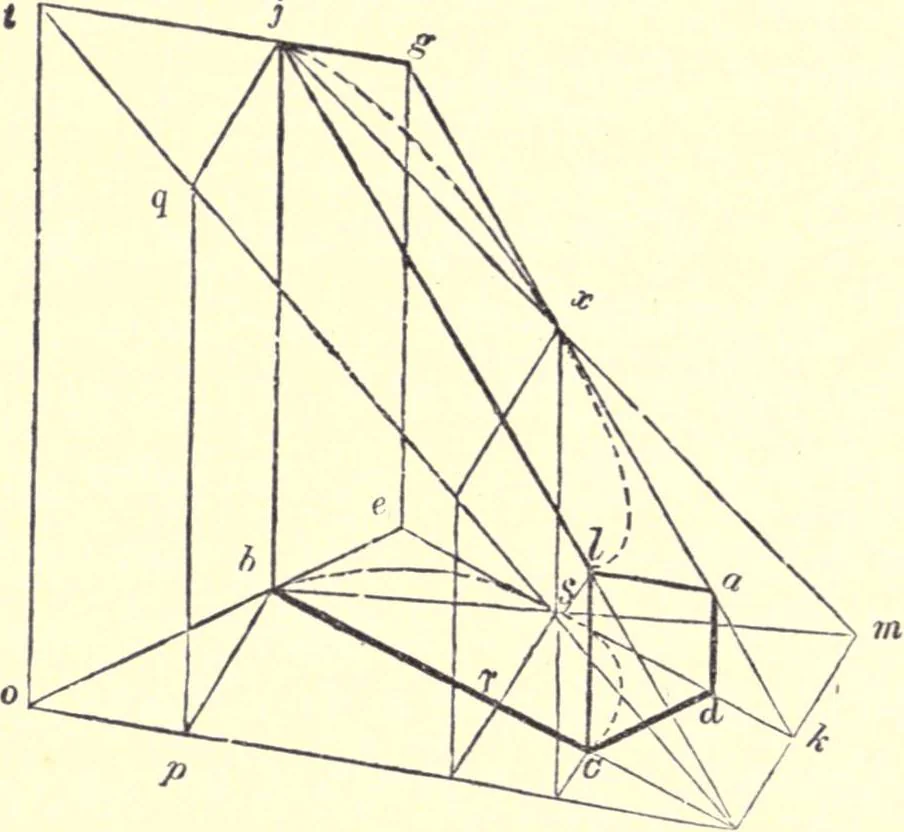

we shall greatly shorten the process for obtaining ordinates. 368 AMERICAN HOUSE-CARPENTER. … Fig. 824 / This may be done thus : from/, draw/o. at right angles tofm;extend e b to o, andg-j, to t; from o, draw o /, at right angles too/, and join t and/; then £ o/ will be a perpendicular plane, atright angles to the inclined plane, t g kf; because the base ofthe former, o/ is at right angles…
