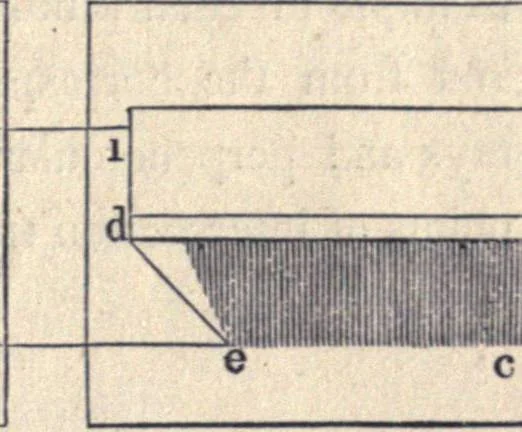

Fig. 344 Fig. 845. 506.—To find the shadow cast by a shelf inclined in its vertical section either upward or downward. From a, (Fig. 3-i-and 345,) draw a b, at the usual angle, and from b, draw b cparallel with the shelf; obtain the point, e, by drawing a linfrom d, at the usual angle. In Fig. 344,…
