The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry (1852)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 227

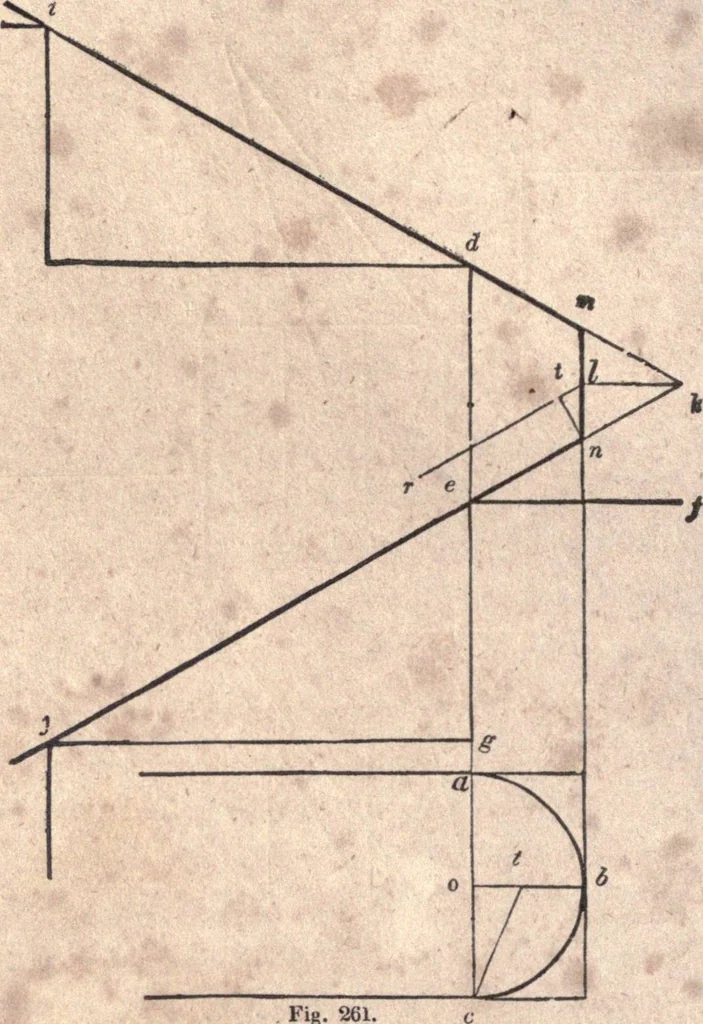

210 AMERICAN HOUSE-CARPENTER. … Fig. 261. 367.— To find the face-mould for a round hand-rail to plat-form stairs. CASE 1.— When the cylinder is small. In Fig,261, j and e represent a vertical section of the last two steps of thefirst flight, and d and i the first two steps of the second flight, ofa platform stairs, the line, e f,…
Carpentry · Architecture
