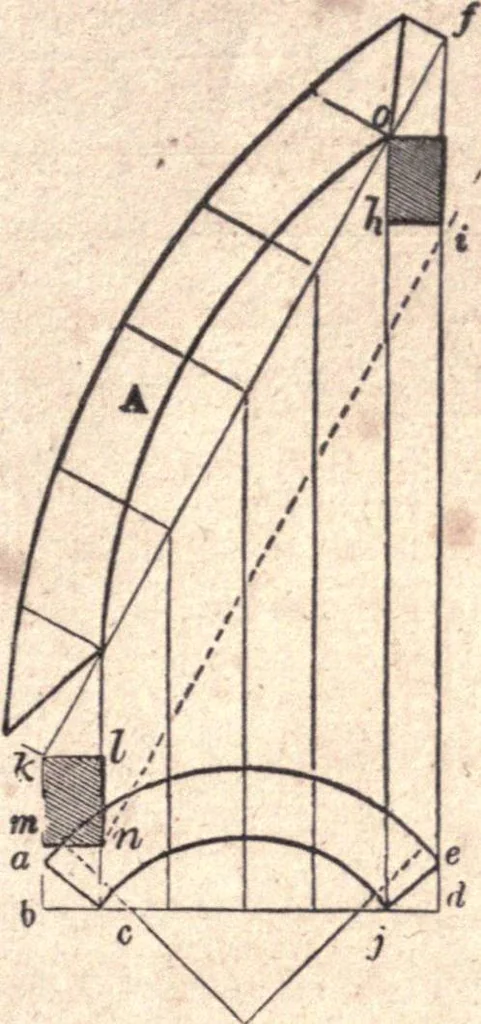

atright angles to u o ; make u I equal to t s, c 2 equal to r 2, g 3equal to/ 3, &c., and trace the curve, 1 7, through the pointsthus found ; find the curve, c e, in the same manner, by transfer-ring the distances between the line, t a, and the arc, r d ; join 1and c, also e and 7; then, 1 c e… … Fig. 277. 277,) equal to a8 c2 j e* at Fig. 274; at any convenient height onthe line, d i, in that figure, draw q i, parallel to e d ; through candj, (Fig. 277,) draw b d ; through a, and from j, draw 6 k and; o, at right angles to b d ; make b k and j o equal to i2 k and yi, respectively, in Fig.…
