The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others (1880)
Hatfield, R. G. (Robert Griffith), 1815-1879, Hatfield, O. P., ed · New York, J. Wiley & sons · leaf 219

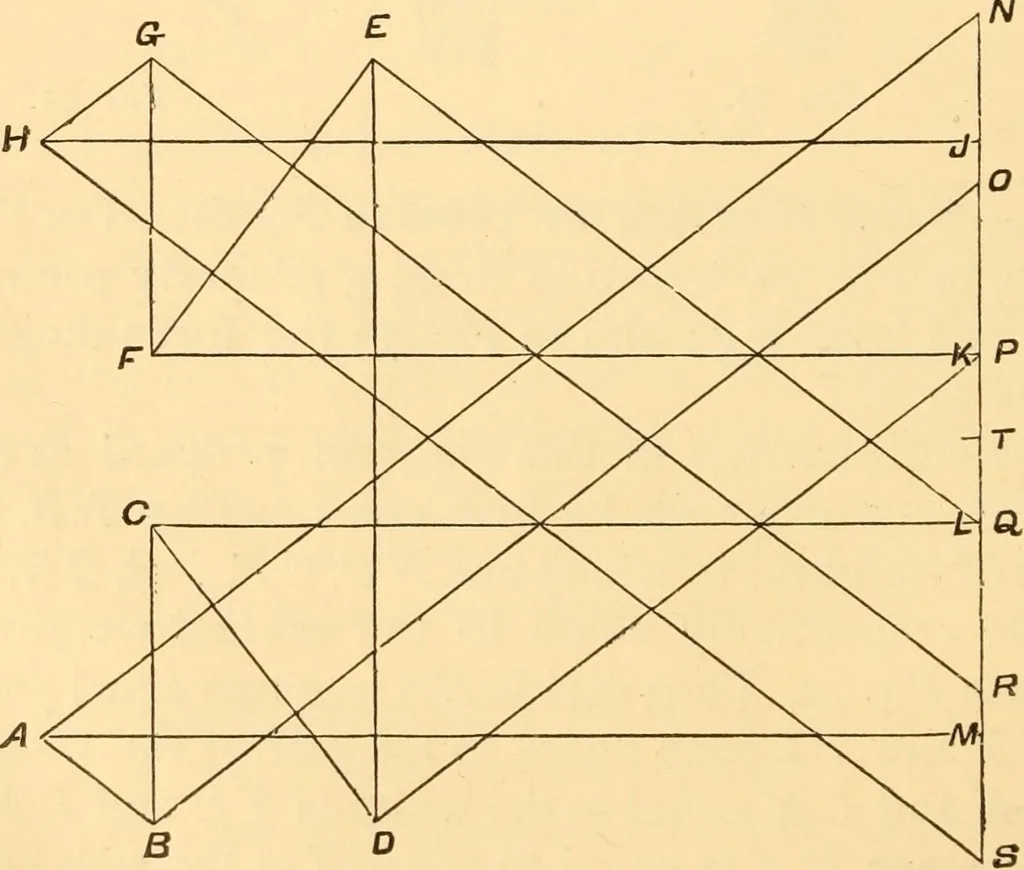

Fig. 72. 73, give likewise the strains in the three corresponding linesmeeting at the point H JS, Fig.ji. Continuing the con-struction, draw all the other lines of the force diagram parallel … Fig. 73- with the corresponding lines of Fig. 72, and as directed inArt. 195. The completed diagram will measure the strainsin all the lines of Fig. 72. FORCE DIAGRAMS CONTINUED. 83 208. —Force Diag^raiii for Tru§s in Fig. 63.—The rooftruss indicated at Fig, 63 is repeated in Fig. 74, with the ad
Carpentry · Architecture · Building
