The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others (1880)
Hatfield, R. G. (Robert Griffith), 1815-1879, Hatfield, O. P., ed · New York, J. Wiley & sons · leaf 307

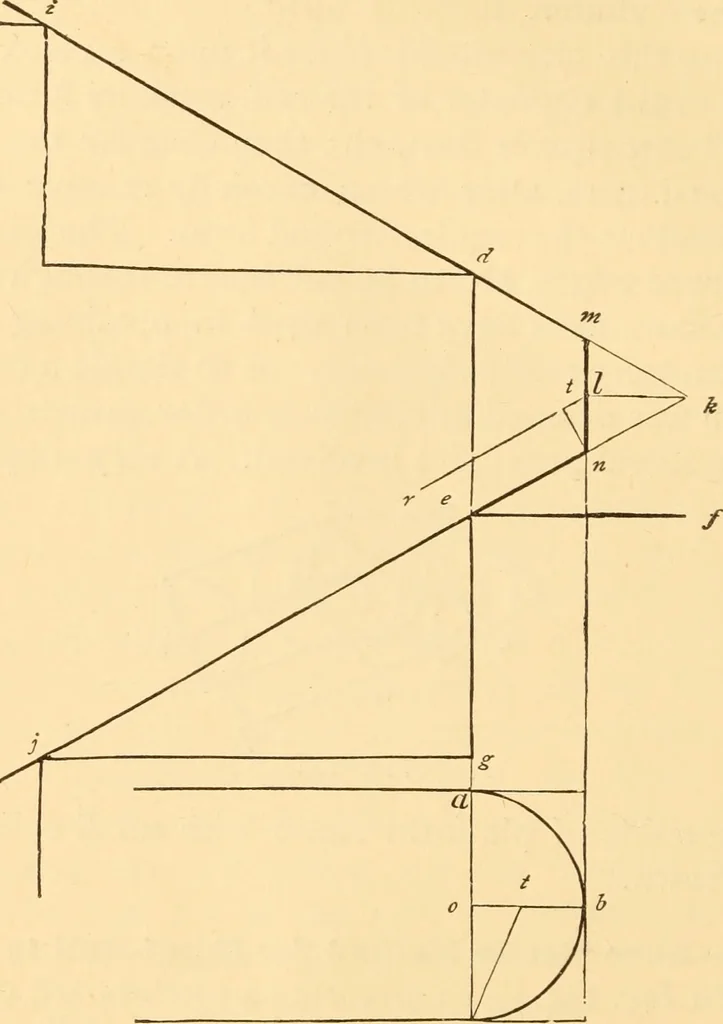

5,make ec equal to en at Fig. 144 ; from c draw ^ ^^ at rightangles to j c, and make ct equal to ^ / at Fig. 144; through /draw p I parallel to j c, and make 11 equal to / / at Fig. 144;join /and c, and complete the parallelogram ecls\ find thepoints 0, 0, 0, according to Art. 551 ; upon e, 0, 0,… … Fig. 144. will give the proper form for the mould. The joint at / isdrawn at right angles to c I,
